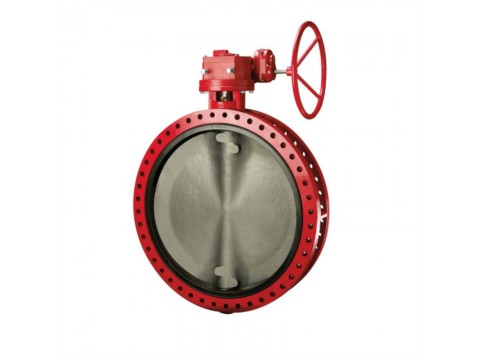

U type butterfly valve -LWBV-6 is a normal type of butterfly valve.
U-type butterfly valve is widely used in coal chemical, petrochemical, rubber, paper, pharmacy and other pipelines as media splitting, confluence or flow direction switching device.
The U-shaped butterfly valve adopts a top-mounted structure, which reduces the connecting bolts of the valve body under the conditions of high pressure and large diameter, enhances the reliability of the valve and can overcome the influence of the weight of the system on the normal operation of the valve. It is very advantageous in industrial applications. U type butterfly valves are very reliable and require little maintenance.
Specifications
LWBV-6 U Type Butterfly Valve
Actuator: Gear Box
Valve Body: Ductile Iron/GGG40/GGG50
Valve Disc: Stainless Steel 304 CF8
Valve Stem: Stainless Steel 420
Valve Seat: EPDM
Pin: With Pin
Bolt: Stainless Steel SS201
Stem: Square/Round
Standard: PN10/16 150LB 5K/10K
Top Flange: ISO 5211
No.: LWBV-6
Size: 4inch DN100
Weight: 5KG
Temperature: -20℃-120℃
If you have any questions, feedback or comments, please contact us and we will get back to you as soon as possible.
Advantage
1. Small size, light weight, easy to install and maintain.
2. Easy and fast switching, easy for frequent operation.
3. Simple and compact structure, suitable for large diameter valves.
4. Small torque, save energy.
5. Can be used for conveying slurry, excellent adjustment performance.
6. Long service life, withstand the test of tens of thousands of open and close operations.
7. Wide choice of materials, suitable for various media.
8. The sealing surface is generally made of rubber or plastic, with good sealing performance under low pressure.
