Product Description

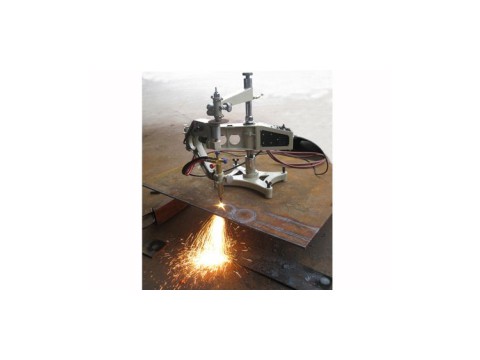

The main body is made of aluminum by die-casting minutely.
Speed system is adjusted by integrated circuit, to ensure running steadily.
Oxygen acetylene hoses are made of high quality rubber.
High precision in cutting with well smooth surface.
Especially for batch producing of components in same patterns.
Applied to shipbuilding, oil production,metallurgy,metal structure and other manufacturers etc.
Suitable for
|
Model NO. |
L×W×H (mm) |
Cutting Thickness (mm) |
Cutting Speed (mm/min) |
Dia.of.Circle Cutting (mm) |
Length Of Line Cutting (mm) |
Max. Size Of Cutting Square (mm) |
Max. Size Of Cutting Rectangle (mm) |
Total Weight (kg) |
|
CG2-150 |
1190×335×800 |
6~100 |
50~750 |
Φ20~Φ600 |
1200 |
500×500 |
400×900 450×750 |
56.5 |
