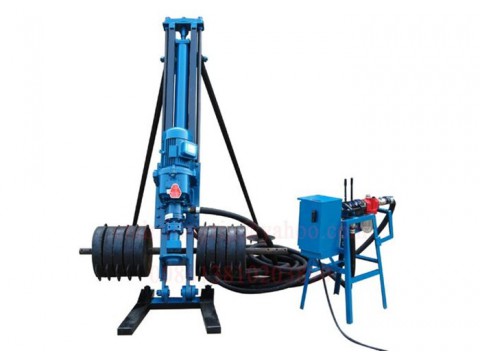

DM100A Pneumatic Powered Rock Drilling Rig
The rock blasting drilling rig DM100A/B is high powered with easy operation system. The pneumatic drill could be applied in open mine, water and electricity projects, railway and highway construction project. Within rock hardness range f=8-16,the quarry drilling machine can reach a higher drilling speed; the rubber hose braided with steel wire could bear high pressure; anchor holes could use on the two sides of slides by the M42X10X1.5 screw holes, which also could be used to fix optional (XQ) sled bearing drill holes 0 ° -90 °; or work with vertical shaft underground and Channel drilling 0°-360°borehole and ventilation, drain holes.The construction drilling equipment DM100A/B is really a gear helping hands for you to improve efficiency.
|
MODEL |
DM100A |
DM100B |
|
Air pressure(Mpa) |
0.5-0.7 |
0.5-0.7 |
|
Hole diameter(mm) |
75-130 |
75-130 |
|
Air consumption(m3/min) |
9-17 |
6-12 |
|
Hole depth(m) |
20 |
20 |
|
Feed Stroke(m) |
1 |
1 |
|
Lifting power(N) |
600 |
600 |
|
Rotation Speed(r/min) |
0-80 |
110 |
|
Rock hardness |
f=8-16 |
f=8-16 |
|
Drive mode |
Wind motor |
Motor(Electricity) |
|
Rated power(kw) |
4 |
4 |
|
Drill pipe |
φ50×1m |
φ50×1m |
|
Size |
2700×450×630 |
2700×420×610 |
|
Weight(kg) |
245 |
300 |
