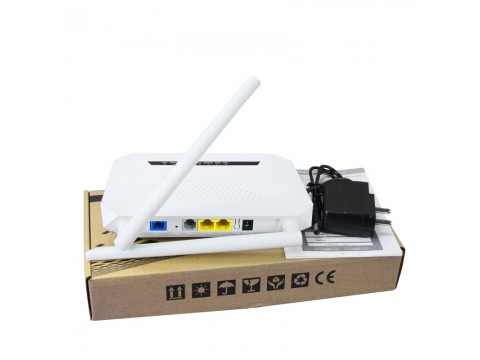

Click image to view original image
Short Description:
Model Number: HUR2202XR
Application: FTTH FTTB FTTX
Network Transmission Distance: 20km
PON Interface: 1 GPON BOB Class B+/Class C+
Wavelength: Tx1310nm/Rx1490nm
LAN Interface: 1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE)
Optical Interface: SC/UPC connector Single Fiber Power Consumption: ≤6W DC
power supply: 12V 1A
Certification: CE RoHS ISO9001
Warranty: 1Year Type: FTTH Solutions
Product Description
1. Overview
* HUR2202XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* HUR2202XR is based on mature and stable, cost-effective XPON technology.
* HUR2202XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X.
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 4G WIFI 2*2 MIMO
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system.
3. Hardware Specification
|
Technical item
|
Details
|
|
PON Interface
|
1 GPON BOB （Class B+/Class C+）
|
|
Receiving sensitivity: ≤-27dBm/≤-29dBm
|
|
|
Transmitting optical power: +0.5~+5dBm/+2~+7dBm
|
|
|
Transmission distance: 20KM
|
|
|
Wavelength
|
TX: 1310nm, RX: 1490nm
|
|
Optical Interface
|
SC/UPC Connector
|
|
Design Scheme
|
RTL9602C+RTL8192FR+Si32192 BOB(RTL8290B)
|
|
Chip Spec
|
CPU 625MHz,DDR2 64MB
|
|
Flash
|
SPI Nor Flash 16MB
|
|
LAN Interface
|
1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
|
|
Wireless
|
Compliant with IEEE802.11b/g/n,
|
|
Operating frequency: 2.400-2.4835GHz
|
|
|
support MIMO, rate up to 300Mbps,
|
|
|
2T2R,2 external antenna 5dBi,
|
|
|
Support: Multiple SSID
|
|
|
Channel: Auto
|
|
|
Modulation type: DSSS, CCK and OFDM
|
|
|
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
|
|
|
LED
|
7 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2
|
|
Push-Button
|
2,For Function of Reset, WPS
|
|
Operating Condition
|
Temperature: 0℃~+50℃
|
|
Humidity: 10%～90%（non-condensing）
|
|
|
Storing Condition
|
Temperature: -30℃~+60℃
|
|
Humidity: 10%~90%（non-condensing）
|
|
|
Power Supply
|
DC 12V/1A
|
|
Power Consumption
|
≤6W
|
|
Dimension
|
180mm×107mm×28mm（L×W×H）
|
|
Net Weight
|
0.15Kg
|
4.Application
* Typical Business：INTERNET、IPTV、WIFI etc
