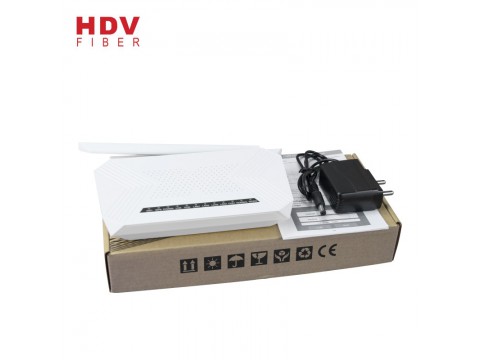

Click image to view original image
Short Description:
Model Number: HUR3107XR
Application: FTTH FTTB FTTX
Network LAN Interface: 1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE)
PON Interface: 1 GPON BOB Class B+/Class C+ Transmission Distance: 20km
Wavelength: Tx1310nm/Rx1490nm
Optical interface: SC/APC connector Single Fiber
Power Consumption: ≤6W DC power supply: +12V,1A
Certification: RoHS/ISO9001/CE
Warranty: 1 Year Type: FTTH Solutions
Product Description
1. Overview
* HUR3107XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* HUR3107XR is based on mature and stable, cost-effective XPON technology.
* HUR3107XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X2. Functional 2.Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 4G WIFI and 2*2 MIMO
* Support CATV interface for Video Service and remote control by Major OLT
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
1. Overview
* HUR3107XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* HUR3107XR is based on mature and stable, cost-effective XPON technology.
* HUR3107XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X2. Functional 2.Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 4G WIFI and 2*2 MIMO
* Support CATV interface for Video Service and remote control by Major OLT
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
3. Hardware Specification
|
Technical item
|
Details
|
|
PON Interface
|
1 GPON BOB （Class B+/Class C+）
|
|
Receiving sensitivity:≤-27dBm/≤-29dBm
|
|
|
Transmitting optical power: +0.5~+5dBm/+2~+7dBm
|
|
|
Transmission distance: 20KM
|
|
|
Wavelength
|
TX: 1310nm, RX: 1490nm
|
|
Optical Interface
|
SC/APC Connector
|
|
Design Scheme
|
RTL9603C+RTL8192FR BOB(i7525BN)
|
|
Chip Spec
|
CPU 950MHz,DDR2 128MB
|
|
Flash
|
SPI Nor Flash 16MB
|
|
LAN Interface
|
1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
|
|
Wireless
|
Compliant with IEEE802.11b/g/n,
|
|
Operating frequency: 2.400-2.4835GHz
|
|
|
support MIMO, rate up to 300Mbps,
|
|
|
2T2R,2 external antenna 5dBi,
|
|
|
Support: Multiple SSID
|
|
|
Channel: Auto
|
|
|
Modulation type: DSSS, CCK and OFDM
|
|
|
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
|
|
|
CATV Interface
|
RF, WDM, optical power : +2~-15dBm
|
|
Optical reflection loss: ≥45dB
|
|
|
Optical receiving wavelength: 1550±10nm
|
|
|
RF frequency range: 47~1000MHz, RF output impedance: 75Ω
|
|
|
RF output level: 78dBuV
|
|
|
AGC range: -13~+1dBm
|
|
|
MER: ≥32dB@-15dBm
|
|
|
LED
|
9 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2、 Worn、 Normal(CATV)
|
|
Push-Button
|
3,For Function of Reset, WLAN, WPS
|
|
Operating Condition
|
Temperature: 0℃~+50℃
|
|
Humidity: 10%～90%（non-condensing）
|
|
|
Storing Condition
|
Temperature: -30℃~+60℃
|
|
Humidity: 10%~90%（non-condensing）
|
|
|
Power Supply
|
DC 12V/1A
|
|
Power Consumption
|
≤6W
|
|
Dimension
|
180mm×107mm×28mm（L×W×H）
|
|
Net Weight
|
0.2Kg
|
* Typical Solution：FTTH(Fiber To The Home)
* Typical Business：INTERNET、IPTV、WIFI 、CATV etc
