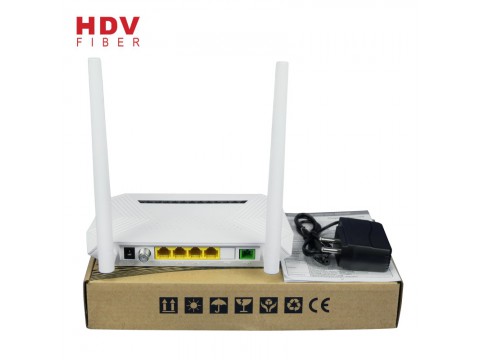

Click image to view original image
Short Description:
PON Interface: 1 GPON BOB
Class B+/Class C+
LAN Interface): 1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE)
Transmission distance: 20km
Wavelength: Tx1310nm, Rx1490nm
DC power supply: +12V,1A
Optical interface: SC/UPC
connector Application: FTTH(Home),FTTO(Office), FTTB(Building)
Certification: ROHS/CE/ISO9001
Warranty: 1 Year
Power Consumption: ≤6W Type: FTTH Solutions
1. Overview
* HUR3104XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* HUR3104XR is based on mature and stable, cost-effective XPON technology.
* HUR3104XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
2.Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4and IPv6 Dual mode
* Support 4G WIFIand 2*2 MIMO
* Support LAN IP and DHCP Server configuration
* Support Port Mappingand Loop-Detect
* Support Firewall function andACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
3.Hardware Specificaion
|
Technical item
|
Details
|
|
PON Interface
|
1 GPON BOB （Class B+/Class C+）
|
|
Receiving sensitivity: ≤-27dBm/≤-29dBm
|
|
|
Transmitting optical power: +0.5~+5dBm/+2~+7dBm
|
|
|
Transmission distance: 20KM
|
|
|
Wavelength
|
TX: 1310nm, RX: 1490nm
|
|
Optical Interface
|
SC/UPC Connector
|
|
Design Scheme
|
RTL9603C+RTL8192FR BOB(i7525BN)
|
|
Chip Spec
|
CPU 950MHz,DDR2 128MB
|
|
Flash
|
SPI Nor Flash 16MB
|
|
LAN Interface
|
1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
|
|
Wireless
|
Compliant with IEEE802.11b/g/n,
|
|
Operating frequency: 2.400-2.4835GHz
|
|
|
support MIMO, rate up to 300Mbps,
|
|
|
2T2R,2 external antenna 5dBi,
|
|
|
Support: multiple SSID
|
|
|
Channel: Auto
|
|
|
Modulation type: DSSS, CCK and OFDM
|
|
|
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
|
|
|
LED
|
9 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN4
|
|
Push-Button
|
3,For Function of Reset,WLAN,WPS
|
|
Operating Condition
|
Temperature: 0℃~+50℃
|
|
Humidity: 10%~90%(non-condensing)
|
|
|
Storing Condition
|
Temperature: -30℃~+60℃
|
|
Humidity: 10%~90%(non-condensing)
|
|
|
Power Supply
|
DC 12V/1A
|
|
Power Consumption
|
≤6W
|
|
Dimension
|
180mm×107mm×28mm(L×W×H)
|
|
Net Weight
|
0.2Kg
|
Typical Solution：FTTH(Fiber To The Home)
Typical Business：INTERNET、IPTV、WIFI etc
