Short Description:

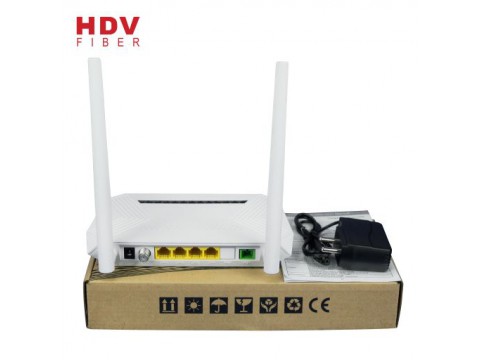

Model Number: HUR3103XR
Application: FTTH FTTB FTTX
Network Transmission Distance: 20km
LAN Interface: 1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE)
PON Interface: 1 GPON BOB Class B+/Class C+
Optical Interface: SC/APC connector Single Fiber
Wavelength: Tx1310nm/Rx1490nm
Power Supply: DC 12V/1A
Power Consumption: ≤6W
Certification: CE/ROHS/ISO9001
Warranty: 1Year
Type: FTTH Solutions
Products Description
1. Overview
* HUR3103XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* HUR3103XR is based on mature and stable, cost-effective XPON technology.
* HUR3103XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X.
1. Overview
* HUR3103XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* HUR3103XR is based on mature and stable, cost-effective XPON technology.
* HUR3103XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X.
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 4G WIFI and 2*2 MIMO
* Support CATV interface for Video Service and remote control by Major OLT
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 4G WIFI and 2*2 MIMO
* Support CATV interface for Video Service and remote control by Major OLT
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
3.Specification
|
Technical item
|
Details
|
|
PON Interface
|
1 GPON BOB （Class B+/Class C+）
|
|
Receiving sensitivity: ≤-27dBm/≤-29dBm
|
|
|
Transmitting optical power: +0.5~+5dBm/+2~+7dBm
|
|
|
Transmission distance: 20KM
|
|
|
Wavelength
|
TX: 1310nm, RX: 1490nm
|
|
Optical Interface
|
SC/APC Connector
|
|
Design Scheme
|
RTL9603C+RTL8192FR BOB(i7525BN)
|
|
Chip Spec
|
CPU 950MHz,DDR2 128MB
|
|
Flash
|
SPI Nor Flash 16MB
|
|
LAN Interface
|
1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
|
|
Wireless
|
Compliant with IEEE802.11b/g/n,
|
|
Operating frequency: 2.400-2.4835GHz
|
|
|
support MIMO, rate up to 300Mbps,
|
|
|
2T2R,2 external antenna 5dBi,
|
|
|
Support: Multiple SSID
|
|
|
Channel: Auto
|
|
|
Modulation type: DSSS, CCK and OFDM
|
|
|
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
|
|
|
CATV Interface
|
RF, WDM, optical power : +2~-15dBm
|
|
Optical reflection loss: ≥45dB
|
|
|
Optical receiving wavelength: 1550±10nm
|
|
|
RF frequency range: 47~1000MHz, RF output impedance: 75Ω
|
|
|
RF output level: 78dBuV
|
|
|
AGC range: -13~+1dBm
|
|
|
MER: ≥32dB@-15dBm
|
|
|
LED
|
11 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN4、 Worn、 Normal(CATV)
|
|
Push-Button
|
3,For Function of Reset, WLAN, WPS
|
|
Operating Condition
|
Temperature: 0℃~+50℃
|
|
Humidity: 10%～90%（non-condensing）
|
|
|
Storing Condition
|
Temperature: -30℃~+60℃
|
|
Humidity: 10%~90%（non-condensing）
|
|
|
Power Supply
|
DC 12V/1A
|
|
Power Consumption
|
≤6W
|
|
Dimension
|
180mm×107mm×28mm（L×W×H）
|
|
Net Weight
|
0.2Kg
|
* Typical Solution：FTTH(Fiber To The Home)
* Typical Business：INTERNET、IPTV、WIFI 、CATV etc
