Short Description:

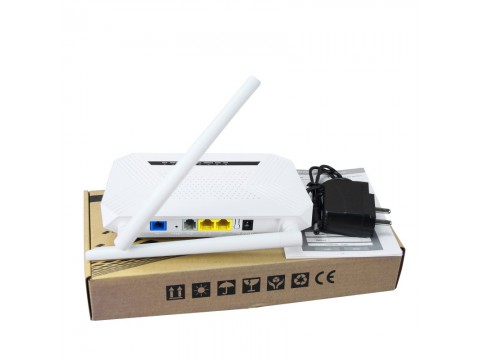

Model Number: HUR2201XR
Application: FTTH FTTB FTTX
Network Transmission Distance: 20km
PON Interface: 1 GPON BOB Class B+/Class C+
Wavelength: Tx1310nm/Rx1490nm
LAN Interface: 1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE)
Optical Interface: SC/UPC connector Single Fiber Power Consumption: ≤6W
DC power supply: 12V 1A
Certification: RoHS/CE/ISO9001
Warranty: 1 Year
Type: FTTH Solutions
Product Description
1. Overview
* HUR2201XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* HUR2201XR is based on mature and stable, cost-effective XPON technology.
* HUR2201XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X.
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 4G WIFI and 2*2 MIMO
* Support SIP Proctolfor Voip Service
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
3. Hardware Specification
|
Technical item
|
Details
|
|
PON Interface
|
1 GPON BOB （Class B+/Class C+）
|
|
Receiving sensitivity: ≤-27dBm/≤-29dBm
|
|
|
Transmitting optical power: +0.5~+5dBm/+2~+7dBm
|
|
|
Transmission distance: 20KM
|
|
|
Wavelength
|
TX: 1310nm, RX: 1490nm
|
|
Optical Interface
|
SC/UPC Connector
|
|
Design Scheme
|
RTL9602C+RTL8192FR+Si32192 BOB(RTL8290B)
|
|
Chip Spec
|
CPU 625MHz,DDR2 64MB
|
|
Flash
|
SPI Nor Flash 16MB
|
|
LAN Interface
|
1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
|
|
Wireless
|
Compliant with IEEE802.11b/g/n,
|
|
Operating frequency: 2.400-2.4835GHz
|
|
|
support MIMO, rate up to 300Mbps,
|
|
|
2T2R,2 external antenna 5dBi,
|
|
|
Support: Multiple SSID
|
|
|
Channel: Auto
|
|
|
Modulation type: DSSS, CCK and OFDM
|
|
|
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
|
|
|
POTS interface
|
1 FXS, RJ11 connector
|
|
Support: G.711/G.723/G.726/G.729 codec
|
|
|
Support: T.30/T.38/G.711 Fax mode, DTMF Relay
|
|
|
Line testing according to GR-909
|
|
|
LED
|
8 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2、FXS
|
|
Push-Button
|
2,For Function of Reset,WPS
|
|
Operating Condition
|
Temperature: 0℃~+50℃
|
|
Humidity: 10%～90%（non-condensing）
|
|
|
Storing Condition
|
Temperature: -30℃~+60℃
|
|
Humidity: 10%~90%（non-condensing）
|
|
|
Power Supply
|
DC 12V/1A
|
|
Power Consumption
|
≤6W
|
|
Dimension
|
180mm×107mm×28mm（L×W×H）
|
|
Net Weight
|
0.15Kg
|
* Typical Solution：FTTH(Fiber To The Home)
* Typical Business：INTERNET、IPTV、WIFI 、VOIP etc
