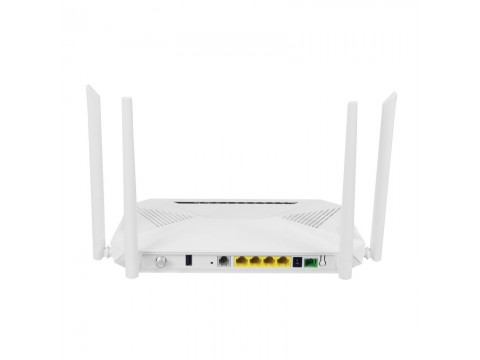

2.4G&5G 4GE+4WIFI+1POTS+1USB+1CATV Dual Band AC GPON XPON ONU

Click image to view original image

Brand:	HDV-Fiber
Price:	43.00USD/HUR4101XR
Min.Order:	1 HUR4101XR
Supply	12000 HUR4101XR
Delivery:	Shipment within 8 days since the date of payment
Address:	China
Valid until:	Never Expire
Updated on:	2022-02-13 10:38
Hits:	47993

Company Detail

Shenzhen HDV Photoelectron Technology Ltd.
[Credit File]
Already 0.00 USDSecurity deposit
ContactsSabbir Ahmed(Mr.)
Member [Offline] [Add to my friend] [Send mail]
Phone
Mobile [Send SMS]
AreaChina

Details

Short Description:

Model Number:HUR4101XR

PON Interface:1 GPON BoB(Class B+/Class C+)

LAN Interface:4 x 10/100/1000Mbps auto adaptive

Ethernet interfaces. Wifi:2.4G&5G

wavelength:Tx1310nm/Rx1490nm

Optical interface:SC/APC connector

Power supply:+12V,1A

Dimension:260mm*158mm*192mm(L*W*H)

Wavelength:TX: 1310nm, RX: 1490nm

Transmission distance:20KM

Application:FTTH FTTB FTTX

Network Power Input:≤6W

1. Overview

* HUR4101XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access.

*HUR4101XR is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.

*HUR4101XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X

2. Functional Feature
*Support EPON/GPON mode and switch mode automatically

*Support Route mode for PPPoE/DHCP/Static IP and Bridge mode

*Support IPv4 and IPv6 Dual mode

*Support 2.4G&5.8G WIFI and Multiple SSID

*Support SIP Proctol for Voip Service

*Support CATV interface for Video Service and remote control by Major OLT

*Support LAN IP and DHCP Server configuration

*Support Port Mapping and Loop-Detect
*Support Firewall function and ACL function

*Support IGMP Snooping/Proxy multicast feature

*Support TR069 remote configuration and maintenance

*Specialized design for system breakdown prevention to maintain stable system

3. Hardware Specification

Technical item	Details
PON Interface	1 GPON BoB（Bosa on Board）
	Receiving sensitivity: ≤-27dBm
	Transmitting optical power: +1~+4dBm
	Transmission distance: 20KM
Wavelength	TX: 1310nm, RX: 1490nm
Optical Interface	SC/APC Connector
Design Scheme	RTL9607C+RTL8192FR(2.4G)+RTL8812FR(5G)+Si32192 BOB(RTL8290B)
RAM	2Gbit DDR3
Flash	1Gbit SPI NAND Flash
LAN Interface	4 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless	Compliant with IEEE802.11b/g/n,ac
	2.4G Operating frequency:2.400-2.4835GHz
	5.8G Operating frequency:5.150-5.825GHz
	2.4G 2*2 MIMO, rate up to 300Mbps
	5.8G 2*2 MIMO ,rate up to 867Mbps
	4 external antennas 5dBi
	Support Multiple SSID
POTS interface	FXS, RJ11 connector
	Support: G.711/G.723/G.726/G.729 codec
	Support: T.30/T.38/G.711 Fax mode, DTMF Relay
	Line testing according to GR-909
CATV Interface	RF, WDM, optical power : +2~-15dBm
	Optical reflection loss: ≥45dB
	Optical receiving wavelength: 1550±10nm
	RF frequency range: 47~1000MHz, RF output impedance: 75Ω
	RF output level: 78dBuV
	AGC range: -13~+1dBm
	MER: ≥32dB@-15dBm
USB	Standard USB2.0
LED	11 LED, For Status of PWR、LOS、PON、LAN1~LAN4、2.4G、5.8G Worn、 Normal(CATV)
Push-Button	2 ,For Function of Reset and WPS
Operating Condition	Temperature: 0℃~+50℃
Operating Condition	Humidity: 10%～90%（non-condensing）
Storing Condition	Temperature: -30℃~+60℃
Storing Condition	Humidity: 10%~90%（non-condensing）
Power Supply	DC 12V/1A
Power Consumption	≤6W
Dimension	260mm×158mm×192mm（L×W×H）
Net Weight	0.35Kg
Storing Condition	Temperature: -30℃~+60℃
