Short Description:

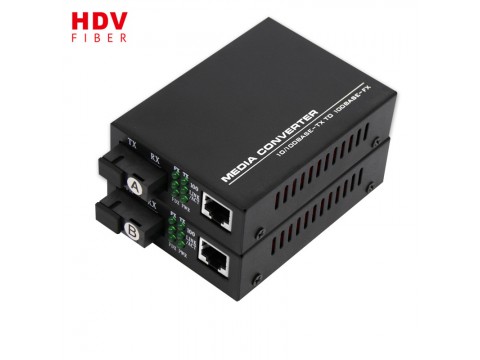

10/100M adaptive fast Ethernet optical media converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100 base-TX and 100 base-Fx network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 120 km’s relay-free computer data network. We can offer dual fiber multi-mode as well single fiber single-mode.
Application :
With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.
Technical Parameters
|
Technical Parameters for 10/100M Adaptive Fast Ethernet Optical Media Converter |
||||||||||
| Number of Network Ports | 1 channel | |||||||||
| Number of Optical Ports | 1 channel |
|
||||||||
| NIC Transmission Rate | 10/100 Mbit/s | |||||||||
| NIC Transmission Mode | 10/100M adaptive with support for automatic inversion of MDI/MDIX | |||||||||
| Optical Port Transmission Rate | 100Mbit/s | |||||||||
| Operating Voltage | AC 220V or DC +5V | |||||||||
| Overall Power | <1W | |||||||||
| Network Ports | RJ45 port | |||||||||
| Optical Specifications | Optical Port: SCMulti-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um | |||||||||
| Data Channel | IEEE802.3x and collision base backpressure supportedWorking Mode: Full/half duplex supported Transmission Rate: 100Mbit/swith error rate of zero | |||||||||
|
Some Product Modes and port Technical Parameters of Optical Port |
||||||||||
|
Desk Type Dual-Optical Single-Mode/Multi-Mode Media Converter |
||||||||||
|
|
||||||||||
Connection Sketch
