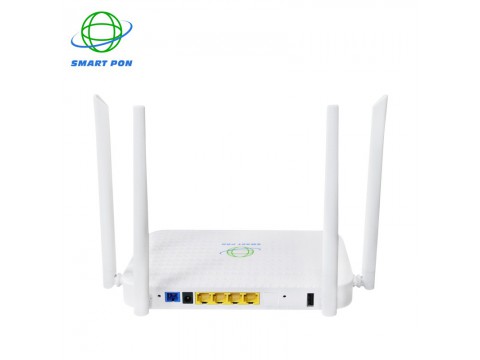

Click image to view original image
Hardware Specification
|
Technical item
|
Details
|
|
PON Interface |
1 GPON BoB（Class B+/Class C+）
|
|
Receiving sensitivity: ≤-27dBm/≤-29dBm
|
|
|
Transmitting optical power: +0.5~+5dBm/+2~+7dBm
|
|
|
Transmission distance: 20KM
|
|
|
Wavelength
|
TX: 1310nm, RX: 1490nm
|
|
Optical Interface
|
SC/UPC Connector
|
|
Design Scheme
|
RTL9607C+RTL8192FR(2.4G)+RTL8812ER(5G)+Si32192 BOB(RTL8290B)
|
|
Chip Spec
|
CPU 950MHz,DDR2 128MB
|
|
Flash
|
SPI NAND Flash 128MB
|
|
LAN Interface
|
4 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
|
|
Wireless |
Compliant with IEEE802.11b/g/n,ac
|
|
2.4G Operating frequency:2.400-2.4835GHz
|
|
|
5.8G Operating frequency:5.150-5.825GHz
|
|
|
2.4G 2*2 MIMO, rate up to 300Mbps
|
|
|
5.8G 2*2 MIMO ,rate up to 867Mbps
|
|
|
4 external antennas 5dBi
|
|
|
Support Multiple SSID
|
|
|
USB
|
Standard USB2.0
|
|
LED
|
9 LED, For Status of PWR、LOS、PON、LAN1~LAN4、2.4G、5.8G
|
|
Push-Button
|
2 ,For Function of Reset and WPS
|
|
Operating Condition
|
Temperature: 0℃~+50℃
|
|
Humidity: 10%～90%（non-condensing）
|
|
|
Storing Condition
|
Temperature: -30℃~+60℃
|
|
Humidity: 10%~90%（non-condensing）
|
|
|
Power Supply
|
DC 12V/1A
|
|
Power Consumption
|
≤6W
|
|
Dimension
|
251mm×230mm×34mm（L×W×H）
|
|
Net Weight
|
0.35Kg
|
|
Storing Condition
|
Temperature: -30℃~+60℃
|
