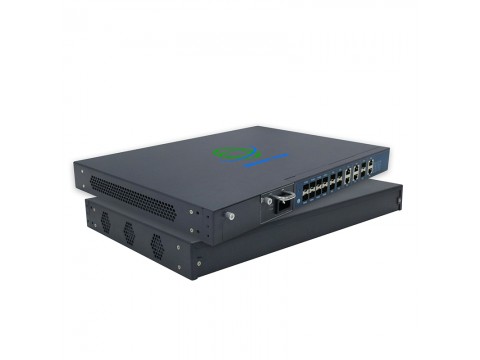

Model Number:SGL1008
Type:FTTx Solutions
Use:FTTX
Uplink:4 * 10/100/1000base-T , 4 * SFP slot , 2 * 10GE SFP+ slot
Downlink:8 * GPON Ports
Max splitting ratio:1:128
Power Supply:AC: input 100~240V 50/60Hz; DC: input 36V~75V
Working temperature:-10°C~55°C
Transmission Distance:20KM
Device management function:NMS / WEB / CLI management
Warranty:1 Year
Product Overview
EPON OLT is a high integration and medium capacity cassette EPON OLT designed for operators’ access and enterprise campus network. It follows the IEEE802.3 ah technical standards and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0. EPON OLT series possesses excellent openness, large capacity, high reliability, complete software function, efficient
bandwidth utilization and Ethernet business support ability, widely applied to the operator front-end network coverage, private network construction, enterprise campus access and other access network construction.
The OLT provides 8 downlink 1.25G EPON ports, 8 * GE LAN Ethernet ports and 4 *10G SFP for uplink. The height is only 1U for easy installation and space saving. It adopts the advanced technology, offering efficient EPON solution. Moreover, it saves a lot cost for operators for it can support different ONU hybrid networking.
| Item | EPON 8 PON Port |
| Service Port | 8 * PON port, |
| 8 * GE , | |
| 4*10GE SFP optical | |
| Redundancy Design | Dual Voltage Regulators |
| Power Supply | AC: input100~240V 47/63Hz |
| Power Consumption | ≤45W |
| Dimensions (Width x Depth x | 440mm×44mm×260mm |
| Height) | |
| Weight (Full-Loaded) | ≤4.5kg |
| Environmental Requirements | Working temperature: -10°C~55°C |
| Storage temperature: -40°C~70°C | |
| Relative humidity: 10%~90%, non-condensing |
