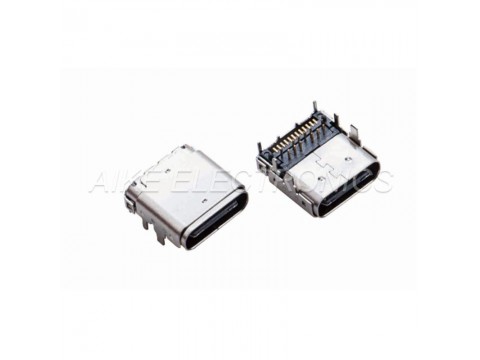

Type C 3.1 Gen2, 24PIN, right angle, Contacts with DIP and SMT type
With the continued success of the USB interface, there exists a need to adapt USB technology to serve newer computing platforms and devices as they trend toward smaller, thinner and lighter form-factors. This Connector is USB Version 3.1 2nd Gen connectors with one row SMT and one row DIP contacts and through hole shielded tabs. AIKE 10Gbps connectors offer 100VAC rated voltage and up to 3A current rating (VBUS Pins, GND Pins). This USB Connectors Type C 3.1 Gen 2 series is a top mount connector featuring a -30°C to +85°C operating temperature range.
Specifications
|
Type c Conn Type |
Type C 3.1 Gen2, 24PIN, right angle, Contacts with DIP and SMT type, through holes legs |
|
Contact No. |
24 |
|
Materials |
For housing can be PBT, LCP, PA6T, PA9T and so on |
|
Colour |
Blue or Black or Green or Customized Color |
|
Plating |
For Shell, Ni and Tin Plating |
|
Plating Thickness |
For Shell, 50U', 100U' or Higher |
|
Machenical |
Meet USB C Type Orginazation Standard (attachment Page 5-53) |
|
Electronical |
Meet USB C Type Orginazation Standard (attachment Page 5-53) |
|
Application |
Mainboard, TV, Computer, Rejector, Game machine,smart home and Industrial etc. |
|
Package |
Tray Package or Tape Reel Or Customized Package |
|
Delivery Time |
Usually 25-35 days after receiving the 30% deposit |
|
Payment terms |
TT, L/C, DP or Negotiable |
|
Note |
This part is only one sample for this serious products, we can change the shell, the legs and even housing to make lots of similar parts. We are so able to produce other standard as per the clients' requirements. Just let us know. |
FAQ
Q1: Can we have our logo on the parts?
A1: Yes, we can print customer logo or laser logo as customer wishes.
Q2: Do your parts apply for TID NO.?
A2: Yes, some parts we do, not for all, based on the parts you need we can apply it for you.
Q3: Can you offer the test reports about the parts?
A3: Yes, of course, we can do the test in house and offer reports accordingly.
Q4: Shall we have the drawings?
A4: Yes, drawing is the basic docs that we show the materials and electronics etc.
We are Type c Contacts Manufacturer.
