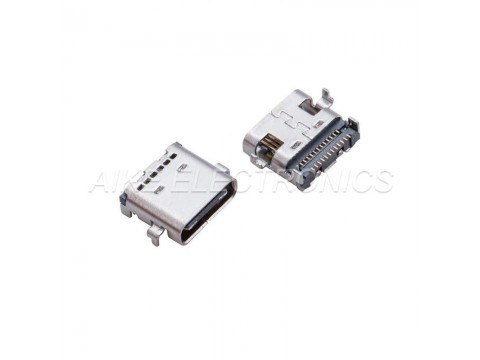

USB Type C 3.1,Receptable 24PIN, double Rows SMT Contacts, through holes legs, SINK PCB board Type

Connectors Type c Supplier

China Type c Connectors

Introduction：

With the continued success of the USB interface, there exists a need to adapt USB technology

to serve newer computing platforms and devices as they trend toward smaller, thinner and lighter form-factors. Type c Conn is the connection which can be inserted into both sides, and other interfaces support USB standard charging, data transmission, display and output functions



Type

USB Type C 3.1,Receptable 24PIN, double Rows SMT Contacts, through holes legs, SINK PCB board Type.

Contact No.

24

Materials

For housing can be ,LCP,PA6T,PA9T and so on
For shell can be SPCC, Copper and so on.
Both are depands on custoer request

Colour

White or Black or Customized Color

Plating

For Shell, Ni and Tin Plating
For Contact,Au,Ni,and Tin Plating

Plating Thickness

For Shell, 50U',100U' or Higher
For Contact, 1U',3U'5U'15U',30U' or Higher
Both are depands on custoer request

Machenical

Contact resistance: 40mΩ max for initial
                               10mΩ change after test. measure at 20mv, 100mA.

Dielectric withstanding voltage:  AC 100V(rms)

Insulation resistance:100MΩ min.

Contact current rating:
    3A for Vbus pin;1.25A for Vconn and GND pin;
    0.25A for all the other pin.  1.5 Voltage: 5 Vac (rms).

Electronical

Mating force:5~20N

Unmating force:8~20N Initial test,6~20N After test

Application

Mainboard,TV,Computer,Rejector,Game machine,smart home and Industrial etc.

Package

Tray Package or Tape Reel Or Customized Package

Delivery Time

Usually 25-35 days after receiving the 30% deposit

Payment terms

TT, L/C, DP or Negotiable

Note

This part is only one sample for this series products, we can change the shell, the legs and even housing to make lots of similar parts. We are so able to produce other standard as per the clients' requirements. Just let us know.
