Surface treatment: 1: hot dipped galvanized after welding, 2: galvanized and electrostatic polyester powder coated, 3: galvanized and PVC coated

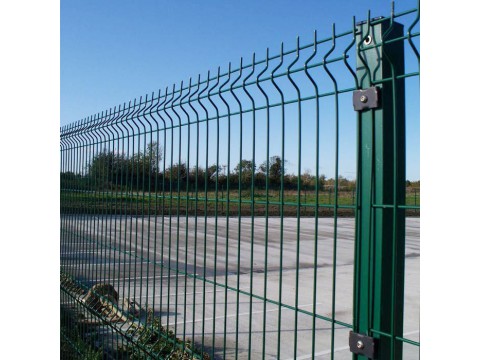

Wire mesh fence is also known as welded wire mesh fences, welded fences or welded fencing. This fence is pretty light yet durable, it's composition simply wire welded togather to make a fence strong.
Material:
high quality loe carbon steel wire and iron wire
Process:
Drawing wire---straightening and cutting---welding---galvanized---pakering---pvc/powder spraying/dipped coating---packaging
Color:
green, blue, white, yellow, gray or as you request
Specification:
|
Height |
Wire diameter |
Mesh opening |
Bending mesh |
Panel width |
Post type |
|
|
830mm |
3.0mm-6.0mm |
50*100mm 55*100mm 50*200mm 55*200mm |
50*200mm 55*200mm 50*100mm 55*100mm |
2.5m or 3.0m |
Type 1 SHS TUBE |
50*50mm 60*60mm 80*80mm 100*100mm |
|
1030mm |
||||||
|
1230mm |
||||||
|
1430mm |
Type 2 RHS TUBE |
40*60mm 40*80mm 60*80mm 80*100mm |
||||
|
1530mm |
||||||
|
1730mm |
Type 3 Round Pipe |
42mm 48mm 60mm 75mm |
||||
|
1830mm |
||||||
|
2030mm |
Type 4 Peach post |
50*70mm 70*100mm |
||||
|
2430mm |
||||||
|
2530mm |
||||||
|
Surface treatment: 1: hot dipped galvanized after welding 2: galvanized and electrostatic polyester powder coated 3: galvanized and PVC coated |
||||||
Application:
Security for construction sites and private property
Security residential housing sites and school
Mainle used as isolution fences or safety fences for roads, railway, traffic control.
