Welded Gabions Coating Galfan (ZnAl) - Gabions Galfan Plus

Welded gabions with coating Galfan treatment is supplied with a wide variety of wire diameter, mesh hole, Galfan coating requirements, for construction and landscape usage for the Bulgarian and Macedonian markets, as well other area and countries in the world.

This type of gabions are made of welded (not woven ) square mesh (usually 75x75mm hole size) with equal opening horizontally and vertically. Popular specifications with wire diameter, mesh hole, Galfan coating minimum requirements per square meter, as below:

1.0 x 1.0 x 0.5m – wire diameter - 3.0mm., mesh size 75 x 75 mm., coating Galfan [ZnAl] – min. 235g/m2
2.0 x 10 x 0.5m – wire diameter - 3.0mm., mesh size 75 x 75 mm., coating Galfan[ZnAl] - min 235g/m2
2.0 x 1.0 x 1.0m – wire diameter - 3.0mm., mesh size 75 x 75 mm., coating Galfan[ZnAl] - min 235g/m2

1.0 x 1.0 x 05m – wire diameter - 4.5mm., mesh size 75 x 75 mm., coating Galfan[ZnAl] - min 235g/m2
2.0 x 1.0 x 0.5m – wire diameter - 4.5mm., mesh size 75 x 75 mm., coating Galfan[ZnAl] - min 235g/m2
2.0 x 1.0 x 1.0m – wire diameter - 4.5mm., mesh size 75 x 75 mm., coating Galfan[ZnAl] - min 235g/m2

Gabions - 2.0 x 1.0 x 0.5m – wire diameter - 4.5mm., mesh size 75 x 75 mm., coating Galfan [ZnAl] - min 235g/m2
Gabions - 1.0 x 1.0 x 0.5m - wire diameter - 4.5mm., mesh size 75 x 75 mm., coating Galfan [ZnAl] - min 235g/m2

Gabions - 2.0 x 1.0 x 1.0m - wire diameter - 3.0mm., mesh size 75 x 75 mm., coating Galfan [ZnAl] - min 235g/m2

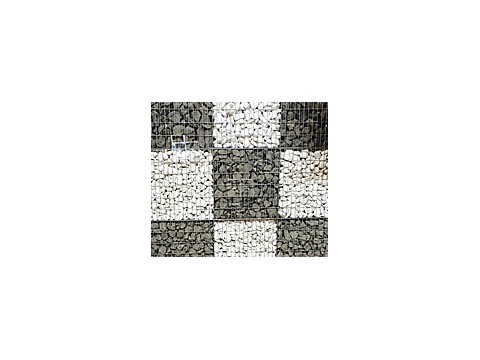

Project of Gabion Wall to Australia & New Zealand

Type: Gabion Cage 1m length x 3m width x 0.5m Height Galfan Plus
Mesh: 75 x 75 mm with spirals
Gabion cage size after assembly: 978 mm length x300 mm width x 528 mm height
Gabion basket made from 4 mm wire welded mesh Galfan plus ( 10% aluminium, 90% zinc), with heavy 280 g/m2 coating
The gabion basket is in kitset form: including 6 panels, 12 spirals, 2 stiffeners

Panel size:
2x 978mm x 527mm, 2x978mm x 300mm, 2x300mmx527mm panels.
75mm x 75mm openings, 4mm Galfan Plus coated wire.
Spiral size: 4 x 1m spirals, 4x0.5m spirals, 4x0.3m spirals x 4mm Galfan coated wire.

Stiffener size: 310mm x 4mm Galfan coated wire
Gabion kitset is supplied in box, in pallet for large quantities.
