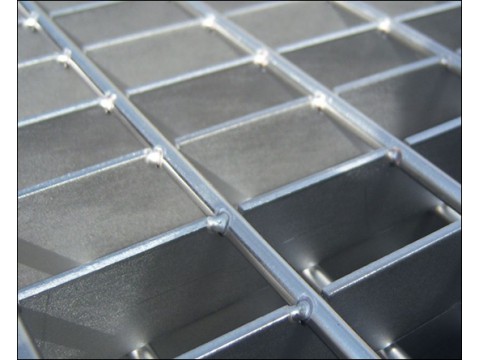

Stainless Steel Grating

Stainless steel bar grating is made by welding or press locking available in varied bearing bar shapes and sizes, especially ideal for flooring and walkway in corrosive environments such as chemical industry, food processing, hydro processing and engineering.

Stainless Steel Gratings
Stainless Steel 304 Grating
Material: SS 304
Panel width: 95mm
Length: 1000mm
Height: 20mm
Distance between Each Ribs: 10mm
Load Carry capacity: 1000Kgs
Application: Grating for the Run of Water Drainage.
Usage: Outdoor & Indoor use.

Stainless Steel Grating, SS 316

Oil Field Flooring Grating:
Grating type: Flooring grate,4' x 8', 316l ss, pitch 25m
Grating, type: Flooring panels,4' x 8', 316l ss, pitch 25mm x 100mm x 5mm serrated,astm standard
Clip: grating, 316l ss, w/m 12mm mild steel bolt, nut and washer

Description:
#316 stainless steel grating with 1-1/2" x 1/8" bearing bars at 1-3/16" o.c. (19 - SGSS-4) 36" wide x 24' long.
#316 stainless steel grating with 1" x 3/16" bearing bars at 1-3/16" o.c. (19 - SGSS-4) 36" wide x 24' long.
#316 saddle clips for the grating.
Grating to be swaged
Grating to have a mill finish
All grating to have a smooth top
