Product Description

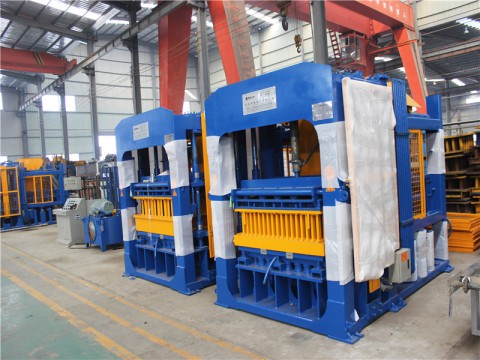

Our shengmao brick making machine is used to produce different types of concrete brick, such as solid brick, hollow brick, multi-hole brick, paving brick, color brick, interlock brick etc. We just need to change the brick mold then we can produce these different types of brick.
Concrete brick machine is multi-purpose, and different molds can be used to produce block products of different shapes and specifications. The mechanical structure of each part is easy to observe, the operation is simple, the maintenance is convenient, and it is not easy to cause failure to ensure normal production operation.
Our Brick Making Machine Specification:
|
Model |
QT4-24 |
QT4-15 |
QT6-15 |
QT8-15 |
|
|
Hollow Brick390*190*190 |
Pcs/Mould |
4 |
4 |
6 |
8 |
|
Forming Cycle (s) |
20-24 |
15-20 |
15-20 |
15-20 |
|
|
Pcs/ Hour |
360-450 |
720-960 |
1080-1440 |
1440-1920 |
|
|
Standard Brick240*115*53 |
Pcs/Mould |
24 |
26 |
30 |
45 |
|
Forming Cycle (s) |
20-24 |
12-17 |
12-17 |
12-17 |
|
|
Pcs/ Hour |
3600-4320 |
5505-7800 |
6352-9000 |
9529-13500 |
|
|
Motor Power (kw) |
13.45 |
24 |
45 |
45 |
|
|
Pallet Size (mm) |
850*550*20 |
880*580*22 |
900*700*25 |
1050*950*28 |
|
|
Pallet Needed (pcs) |
500 |
1200 |
1200 |
1500 |
|
|
Overall Size (mm) |
1850*1880*2240 |
2700*1600*2500 |
3200*2000*2750 |
3800*2200*2750 |
|
|
Total Weight (kg) |
1.56 |
4.5 |
7.9 |
10.5 |
|
