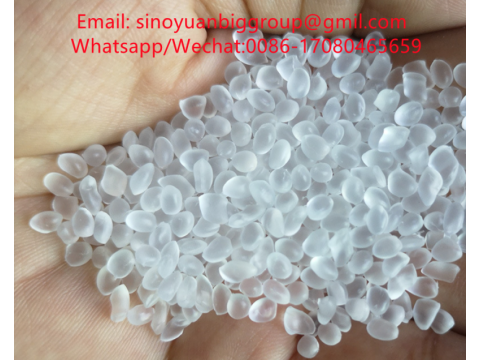

thermoplastic elastomers plastic granules tpe 80A shore tpe raw materials/tpe resin
TPE: Thermoplastic Polyurethane Elastomer
TPE (Thermoplastic Polyester Elastomer) is a block copolymer containing polyester hard segments and polyether soft segments.
Wherein the polyether soft segment and the non-crystalline polyester form the amorphous phase, the hard segment of the polyester partially crystallizes to form a crystalline micro-zone, which serves as a physical crosslinking point.
TPE has the elasticity of rubber and the strength of engineering plastic; the soft segment gives it elasticity so that it behaves like rubber; the hard segment gives it processability making it like plastic; and it has better processability and longer Life; compared with the engineering materials, the same high strength characteristics, and flexibility and dynamic mechanical properties better.
TPE (20-30)
| Product Description | Applications | ||||||||
| · Has good flexibility | · Recyclable | ||||||||
| · Excellent heat stability | · Good mechanical properties balance | ||||||||
| Properties | Test Method | Test Condition | Unit | Typical Values | |||||
| Physical properties | |||||||||
| Specific Gravity | ASTM D792 | 23ºC | g/cm3 | 0.96 | |||||
| MI | ASTM D1238 | g/10min | / | ||||||
| Ash | ISO 3451 | 800ºC,30min | % | 0 | |||||
| Mechanical properties | |||||||||
| Tensile Strength | ASTM D412 | / | MPa | 4.2 | |||||
| Hardness | ASTM D2240 | / | Shore A | 30 | |||||
| Tensile elongation | ASTM D412 | / | % | 600 | |||||
| Permanent deformation | ASTM D412 | / | % | 40 | |||||
| Tear strength | ASTM D624 | / | KN/m | 14 | |||||
| 100% tensile strength | ASTM D412 | / | MPa | 0.8 | |||||
| (23ºC*22h)Compression set (23ºC*22h) | ASTM D395 | / | % | 26 | |||||
| Mold shrinkage | ASTM D955 | - | % | 1.0-1.5 | |||||
| Other properties | |||||||||
| Operating temperature | / | / | ºC | '-40~100 | |||||
| Note: The data in the table is the typical value obtained by the company's quality inspection department. Because of the test method, test environment and some uncontrollable factors, there may be some deviations from your company's test results. Please perform it before the first use according to the actual situation. Related tests. Prior to use the material,please consult with TOPO NEW Material Co., Ltd. | |||||||||
