Product Description
|
Type |

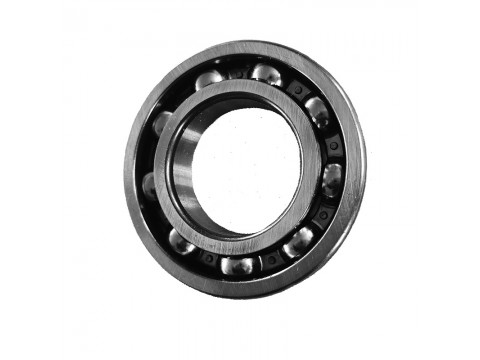

Deep groove ball bearings |
|
Bearing No. |
6306-Z/2Z/RZ/RS/2RS/2RZ |
|
I.D. |
30mm |
|
O.D. |
72mm |
|
Width |
19mm |
|
Weight(Kg) |
0.350mm |
|
Bore Type |
Cylindrical |
|
Closure Type |
Open |
|
Row Type & Fill Slot |
1 |
|
Snap Ring Included |
Without Snap Ring |
|
Internal Clearance |
C3 |
|
Dynamic Load Capacity |
6654 lbf |
|
Static Load Capacity |
3597 lbf |
|
Precision Rating |
ABEC 3 |
|
Finish/Coating |
Uncoated |
|
Feature |
Super finished raceways |
|
Quiet operations, Low noise |
|
|
ISO standard interchangeable dimensions |
|
|
Electric Motor Quality (EMQ) |
|
|
Contact seal(s) offer superior lubricant retention and bearing protection from contaminants |
|
|
long life |
|
|
high temperature resistance of motor-bearing |
Our Nicer bearings are designed optimally, which can bear more load than common radial ball bearing.
Deep Groove Ball Bearings have most widely application, as well as in farm machinery.
The numbers of Deep Groove Ball Bearing are as follows:
6204 6205 6206 6207 6208 6209 6210 6211 6212 6213 6214 6219 6220 6222 6224 6226 6228 6304 6305 6306 6307 6308 6309 6310 6311 6312 6313 6314 6315 6316 6317 6318 6319 6320 6322
