Twill Woven Wire Mesh - Square Hole Woven Wire Products - Thicker and Stronger Filter Fabric - Popular Media for Wire Mesh Discs

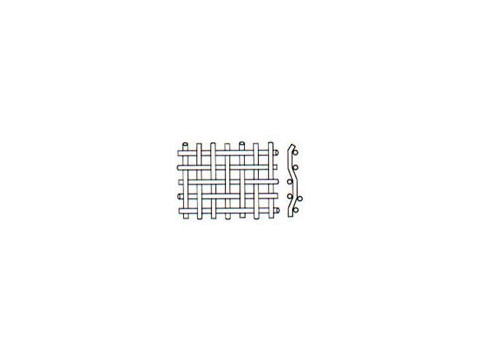

Weaving Method: Twill weave is applied for weaving of heavy meshes and thicker wire fabric with square opening compared with Plain Weave. Each weft wire passes over two and under two warp wires, and each warp wire passes over and under two weft wires. The wire diameter for both (warp and weft) is mostly the same. Twill Weave allows a thicker wire and is suitable for heavy meshes. The wire position of Twill weave wire mesh is less stable compared with plain weave.
Materials: Stainless steel wire, 302, 304, 304L, 316, 316L, etc. Brass wire or copper wire also available. Other metallic wire such as Monel, nickel, titanium, silver can be made for certain mesh numbers.

Features: Twill woven wire mesh has square aperture, it is less rigid than plain weave, easy deforming. It is a strong wire cloth due to ratio of wire diameter and aperture, mostly used for filtration between 25 to 130 μm .

Supplying Forms: Processed into discs, packs, filter baskets or other elements for various industrial uses.
