We supply to Slovenia, Indonesia, Spain, Singapore and other countires all kinds of ss mesh and filter cloth products according to the customers' requirements.
Samples of 2" x 2" pieces wire meshes are provided for quality reference.
Materials: SUS 316, 316L.
Weaving: plain weave, twill weave, dutch.
Character: Acid-resisting , alkali-resisting, heat-resisting, wear-resisting, etc.
Uses: Used in mine, oil, chemical industry, food, etc.
ASTM / BS / IS Standard SS Wire Mesh
We supply stainless steel wire mesh (SS 316) made of material ASTM / BS / IS standard.
Filter Wire Mesh Stainless Steel 316L
316L Duplex Stainless steel wire mesh filter
For seawater prefilteration
Slot Size: 500 microns
Operation Pressure: 10 bar

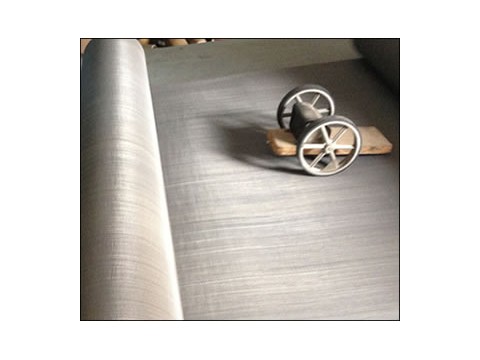

Stainless Steel 316 Wire Mesh, 1x10m Sheet
stainless steel 316 wire mesh as bellow table
Dimension (m) / Wire Diameter (mm) / Mesh
| dimension (m) | Wire Dia. ( mm) | mesh |
| 1 x 10 | 0.1 | 100 |
| 1 x 10 | 0.1 | 80 |
| 1 x 10 | 0.15 | 60 |
| 1 x 10 | 0.15 | 50 |
| 1 x 10 | 0.2 | 40 |
| 1 x 10 | 0.3 | 25 |
| 1 x 10 | 0.4 | 120 |
| 1 x 10 | 0.4 | 18 |
| 1 x 10 | 0.2 | 30 |
| 1 x 10 | 0.2 | 140 |
2m x 1m SS Mesh Roll
Mesh opening: 52,9 x 53,3mm
Wire diameter: 1,72-1,75mm
Weight 1,3kg
Packing: 400 pieces/pallet.
Also include the following document:
1. Technical data for the mesh or wire and associated parts.
2. Project reference that had use this product.
