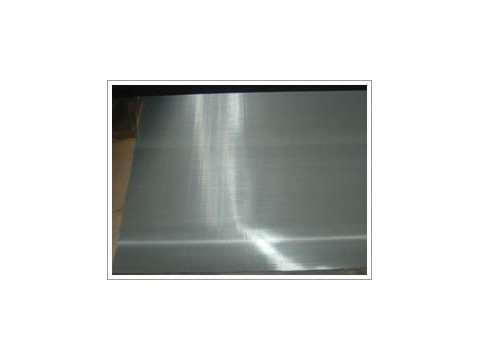

Stainless Steel Wire Mesh / Wire Cloth for Water Filtration
We supply stainless steel mesh cloth for water filtration as well as other filter systems.
Stainless steel wire cloth, 20 micron, with the following specifications:
Absolute filtration fineness 20μm
Mesh size 40cm
Pressure: Withstanding the pressure of 2 bars
Stainless steel wire mesh 316, non magnet
The specifications of the Wire mesh:
Dutch Wire Cloth Type:
| Sr. No. | ( Mesh X Gauge) |
| 1 | 10 X25 |
| 2 | 12X25 |
| 3 | 14X28 |
| 4 | 16X28 |
| 5 | 18X28 |
| 6 | 20x27 |
| 7 | 24X28 |
| 8 | 30x32 |
| 9 | 40x34 |
| 10 | 60x37 |
| 11 | 80x40 |
| 12 | 100x42 |
| 13 | 120x42 |
4-200 Mesh Square Hole:
| MESH | WIRE DIAMETER | Length | Width | Width | Width | Width |
| 4 | 0.70 | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 5 | 0.70 | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 6 | 0.70 | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 7 | 0.70 | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 8 | 0.70 | 30 Meter | 1Meter | 4 Feet To 11 Feet | ||
| 9 | 0.70 | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 10 | 0.70 | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 11 | 0.70 | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 12 | 0.70 | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 14 | 0.45 | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 16 | 0.45 | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 18 | 0.45 | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 20 | 0.40 | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 25 | 0.40 | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 30 | 0.30 | 30 Meter | 1Meter | 4 Feet To 11 Feet | ||
| 35 | 0.27 | 30 Meter | 1Meter | 4 Feet To 11 Feet | ||
| 40 | 0.20 &0.25 | 30 Meter | 1Meter | 4 Feet To 11 Feet | ||
| 50 | 20 Kg( 1Meter) | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 60 | 20 Kg( 1Meter) | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 80 | 18 Kg(1Meter) | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 100 | 16 Kg(1Meter) | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 120 | Standard | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 150 | Standard | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
| 200 | Standard | 30 Meter | 1Meter | 4 Feet | 5 Feet | 2Meter |
