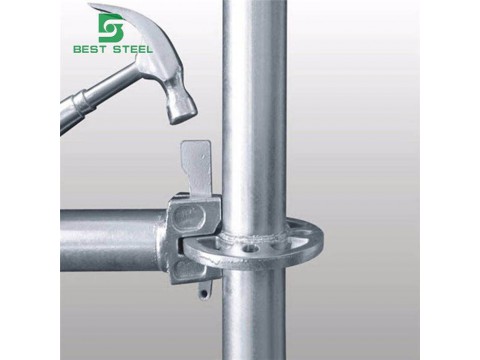

Disc lock scaffolding is widely used in the construction industry. People love it because of its ease of installation, moderation, and reusability.
When the scaffold is manufactured, the scaffold tube, the adapter disc, and the disc lock are separately manufactured, and then welded together to form a crossbar and a vertical rod. All parts can be customized from the map. Or you only need a disc or disc lock, we can also supply it.
|
Product |
Ring-locked scaffolding Vertical (Standard) |
|
Raw Material |
Q235/Q345 |
|
Ring Distance |
0.5m/1m/1.5m/2m/2.5m/3m |
|
Spigot |
With or without both available |
|
Diameter |
48.3*3.2mm/48.3*3.25mm |
|
Surface Treatment |
Hot dip galvanized |
|
Weight |
5.5kg/7.90kg/9.8kg/10.2kg/12.2kg/13.5kg/15.2kg |
