Hanzhong Brisun Optics Co., Ltd. Is the high High precision optical element manufacturer provides customized production of Various optical lenses, including spherical lens, cylindrical lens, optical window, mirror, prism, filter, metal base mirror and other high-precision optical elements. The base materials include various optical glass, fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire, metal and other materials. And provide antireflective film, high reflection film, spectroscopic film, metal film and other optical coatings.

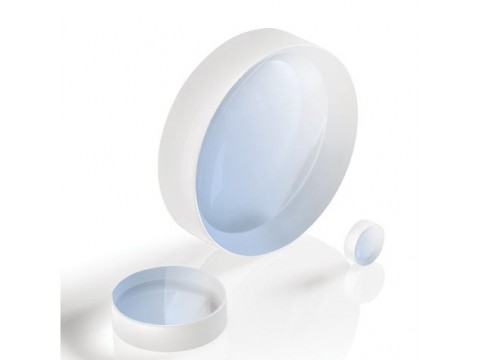

Biconvex lens consists of two spherical radii, which effectively eliminates coma, distortion and color difference. They are combined with other lenses to form an imaging system.
This type of lens is suitable for the following cases: the object and image are on both sides of the lens, and the ratio of image distance to object distance (conjugate ratio) is between 0.2 and 5.
K9 biconvex spherical lens has good transmittance in near infrared (350-2000nm).
H-K9L(N-BK7) is an optical glass commonly used in the preparation of optical elements.
These uncoated biconvex lenses are prepared using H-K9L(N-BK7) conforming to ROHS standard. The collimated beam can converge on the rear focus, or the point light source can be changed into a collimated beam.
Technical parameters:
Material: optical glass, H-K9L (N-BK7)
Radius of curvature: ± 1mm - ± 50000mm ± 1%
Outer circle: 3mm-500mm ± 0.1mm
Center thickness tolerance: ± 0.05mm (we can process to ± 0.01mm with high precision)
Center deviation: 3′(we can process to 30 ″with high precision)
Surface accuracy: λ/ 8 (high precision, we can process to 1 / 10λ)
Surface quality: 40/20 (we can process to 10-5 with high precision)
Effective caliber: ≥90%
Coating: K9 biconvex spherical lens coating is aimed at the wavelength range of 400 -700 nm, 650- 1100 nm and 1050- 1700 nm.
In addition, we have thousands of kinds of stock, such as quartz plano convex lens, quartz plano concave lens, quartz biconvex lens, quartz biconvex lens, cylindrical lens, prism, filters, windows, beamsplitter and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.
If you are interested it, welcome to inquiry us or search "Hanzhong Borisun Optics Co.,Ltd "to know about more details.
