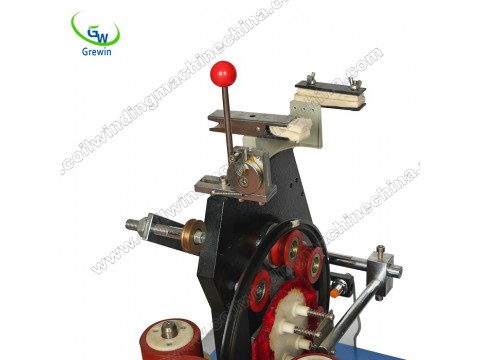

NAME：GWSM-H1819 Smaller Toroid Coil Winding Machine
SPECIFICATION:
|
Wire diameter |
0.20-0.70 |
Max.winding speed |
700rpm |
|
Max.final coil.O.D |
φ60-200 |
Wire spacing |
Proportional linkage |
|
Min.final coil.I.D |
Φ35 |
Supply voltage |
AC 220V（50Hz） |
|
Max.finalcoil height |
100 |
Mechanical dimensions |
550×500×720 |
|
Controller storage capacity Programs |
29 set |
Weight |
83kg |
FEATURES:
Smaller Toroid Coil Winding Machine high quality,easy to operate.
Lock gap shuttles,with polished sliders,gentle on wire insulation.
Electronic linear pick-up for loading (feet or meters).
Shuttles for Smaller Toroid Coil Winding Machine can be exchanged in minutes for maximum flexibility.
Smaller Toroid Coil Winding Machine can separate speed controls for loading and winding.
Programmable stepper motor driven core rotation in either direction with minimum backlash.
ADVANTAGES:
Complete range of articles, large range of wire diameter, Multipurpose
Good compatibility, parts are interchangeable
High stability, part quality guarantee
High production efficiency, no wire breaking at high speed winding
Smaller Toroid Coil Winding Machine is easy to operate, High learnability
A short period of delivery：10 days after receipt of payment
Communicate parameters in a timely and thoughtful manner
Easy maintenance of equipment
APPLICATION:
Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.
PACKAGING:
Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for Toroidal Transformer Winding Machine , Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Toroidal Winding machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.
