Introduction:

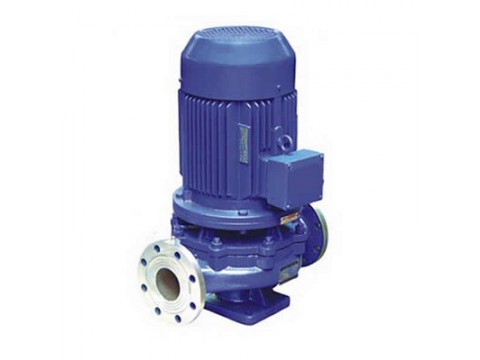

YG Vertical Pipeline Oil Pump design and manufacture in line with the American Petroleum Institute API610 (general refinery centrifugal pump standard) and GB3215-82 "refinery chemical and petrochemical process with centrifugal pump general technical conditions" the relevant provisions. It does not need to build a pump room, can work outdoors. Inlet and outlet flanges in the same centerline can be directly installed on the pipeline, vertical structure, machine pump integration, small occupation area, very convenient installation. With the use of a high-quality mechanical seal, no leakage, effectively reduce the oil and gas content of the pump room, the heart of the working environment to improve the safety and reliability of the pump room. EX explosion-proof motor with explosion-proof grade DIIBT4 is selected. Material: cast iron, stainless steel.
Performance Range:
Flow: 2.5 - 160 m3/h
Delivery Head: 10-150 m
Size.: DN20-DN125 mm
Working Pressure (Max): 1.6 Mpa
Liquid Temperature: -20 -150 C
Applications:
This oil pump is suitable for deliver medium without solid particles, such as gasoline, kerosene, diesel oil, and other petroleum products, the temperature is -20℃∽+120℃; When the liquid temperature is higher than 120℃ or contains trace particles can choose high-temperature structure or chemical pump structure.
