Introduction:

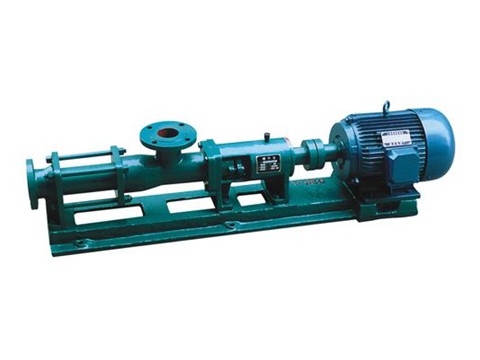

GNF stainless steel single screw pump is a positive displacement slurry pump. Is a new type of liquid conveying machinery, has the advantages of simple structure, safe and reliable work, convenient maintenance, first night continuous and uniform, stable pressure. The metal parts in contact with materials are made of high quality stainless and acid-proof steel, and the bushing is made of non-toxic and tasteless rubber. The working temperature can reach 120°C. Therefore, it has the advantages of corrosion resistance, acid resistance, oil resistance and so on, suitable for conveying various viscosity of food slurry. It is the main working parts of the eccentric screw (rotor) of helix and the inner surface is on the surface of the double spiral screw bushing (called stator) its working principle is when the motor drives the pump shaft rotation, screw around the axis of rotation itself on the one hand, on the other hand it along the bushing inside surface rolling, then form the pump seal chamber, the screw turn every week, The liquid in the sealing chamber pushes forward a screw pitch, and with the continuous rotation of the screw, the liquid presses from one sealing chamber to another in a spiral form, and finally extrudes the pump body.
Performance Range:
Flow: 1.5 - 20 m3/h
Size.: DN32, DN50, DN100
Motor power: 1.5 ~ 11 kw
Speed: 960 rpm
Applications:
Suitable for chemical, petroleum and sewage treatment and other production processes, can be used to transport the viscosity of 1-1000000 cp, do not contain solid particles or glue, slurry, suspension, glue, etc.
