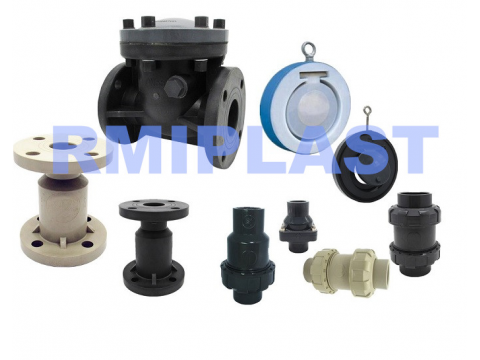

PVC Non Check Valve DIN PN10 model RPV141 is a swing type non return valve, the PVC Wafer Check Valve flow can only get through by one direction, PVC Swing Check Valve is flange connection fit standard DIN PN10. PVC non return valve model RPV141 is suitable for horizontal installation only, PVC Ball Check Valve size from DN15 to DN300, PVC check valve is suitable for chemical industrial for acids and alkali medium.
PVC Non Check Valve DIN have the specifications as follows:
Basic specication
Size: DN15~DN300 (1/2 inch ~ 12 inch)
Flange connection: DIN PN10; ANSI CL150; JIS 10K
Body Material: PVC-U; PVC-C; PVDF; PP-GF; PP-H
Seal material: EPDM; FPM
Design pressure: 0.5~1.0Mpa (PN5~10 bar)
Feature of valve
All the parts that will touch medium is made from thermo plastic and rubber.
Suitable for horizontal installation only.
Bolted bonnet is convenient for inspect the valve, fix and replace the inner part.
Strengthed flange struction make bolted connection stronger
