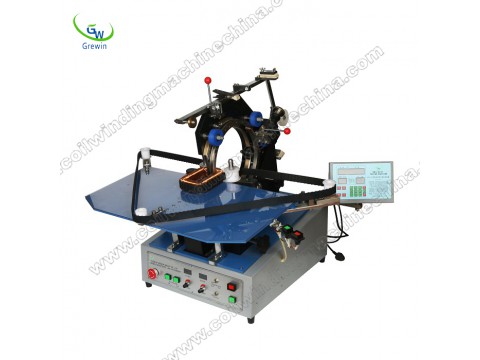

GWM-0319 Rectangular Coil Winding Machine

GWM-0319 Rectangular Coil Winding Machine are advanced,strongly built workhorses capable of winding light as well as heavy wire without insulation damage.

The open gap gear rack and hinged gap magazine of Rectangular Coil Winding Machine facilitate core change ,maximzing output.

Easily exchangeable magazines secure maximum flexbility.

Rectangular Coil Winding Machine can adopts the gear type winding heads,one winding  head and interchangeable roller table with different size shuttle (magazine) for different dimensions coils and different wires and tapes,turns,so that to reduce the cost.

Extremely powerful,maintenance free AC motors for main drive and core rotation.

Memory capacity accommodates 29 sets programs with off-power memory retention.

ADVANTAGES:

Wide range of application, Large range of Speed adjustment, wide range of the wire diameter, Multi-style of core, Brake tension adjustable, Good settlement for large outer diameter, small inner diameter, heavy wire coils.

High production efficiency, increase winding efficiency by adjustment of suitable brake tension,

Each wiring part guarantee no wire damage.

Parts highly optimized and universal for general use, Easy maintenance

Enquiries can be quoted one day service

The storage ring has good material and long service life

Stable machine performance

Communicate parameters in a timely and thoughtful manner

Complete specifications and data

APPLICATION:

Rectangular Coil Winding Machine is the best suited to inductor, rectangular transformers,rectangular coil, power inductors,UPS inductor,converter inductor etc.

PRACTICAL APPLICATION :

TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :
1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.
2.Guide the user to use accurately and how to maintain the Rectangular Coil Winding Machine.
Provide free consultation about production process technology of electronic Rectangular Coil Winding Machine.
3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.

PACKAGING:

Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for Toroidal Transformer Winding Machine , Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Toroidal Winding machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.
