High Carbon Steel Spring Wire

We supply high carbon spring steel wire according to EN 10270-1 or DIN 17223-1 standard, ranging from diameter 0,4 mm to 8,0 mm, for high tensile springs, clamp rings, rolled springs manufacture.

Rod Materials for manufacture of high carbon steel spring wire: 60#, 70#, 75#, 72A, 72B, 82B, 65Mn
Wire diameter range: 0.2-12.0mm
Standard followed in producing high carbon steel spring wire: GB4357-89, DIN17223, EN 10270-1.

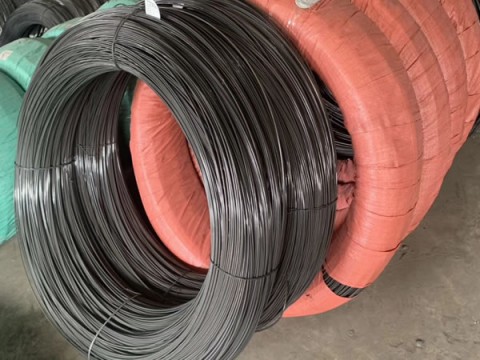

Packing: In coils, wrapped by gunny cloth
Transport: Loading about 20tons in one 20's container
Finish: Black ungalvanized, galvanized surface
Application: High carbon steel spring wire can be widely used for rolling various precision springs.

High Carbon Steel Wire
Ungalvanized High Carbon Steel Wire 2.6mm

Usage: For clamp making
Specifications:
Dimension : -0.040 (2.590mm)
Ovality : max 0.040 (0.006)
Tensile strength : 1670~1910N/mm^2 (1696)
Torsion Value(turns) : min 15 (35)
Components:
C: 0.690~0.760% (0.720%), Si: 0.150~0.350%(0.208%), Mn: 0.600~0.900%(0.679%)
P: MAX 0.030% (0.021%) S: MAX 0.030 (0.005%)
Packing: In 200kg roll
