Waste management PCB recycling machine

Waste management PCB recycling machine from Doing company is a kind of environmental friendly recycling machine to process PCB get metals and resin&fiber separated.

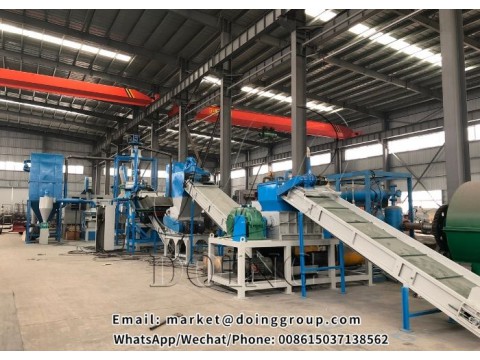

The whole working process of waste management PCB recycling machine, which includes shredding, twice crushing, magnetic separation, air separation and electrostatic separation.

1. shredder and crusher can process the PCB as small pieces about 20 mesh.

2. Then using an eddy-vibrating screen to detect the size of materials. only small enough pieces can go through the screen of eddy-vibrating screen. The bigger pieces will be sent back to the crusher for further crushing.

3. The air separator adopts Italian air suspension principle to separate metals and non-metals according to their different gravity. The separation rate of air separator can reach to 96%.

4. In order to get higher separation rate, we need an electrostatic separator to separate metals and non-metals according to their different charged properties. After this separating, the separating rate can get more than 99%.

5. At the whole process, we will have pulse dust collector and cyclone dust collector to collect the dust produced. the collecting rate is 99%, which won't pollute the air, but also assure the clean of working environment.

At last, we can get metals and resin fiber about 20 mesh from waste PCBs by using waste management PCB recycling machine. Waste management PCB recycling machine uses dry type physical separation method, which won't cause any damage to the quality of metals and resin fiber. These high purity and good quality of metals and resin fiber have a good market. The metal we can sale in metal market or refining factory, and as for resin&fiber, they can be made as wood plastic filler.

Frequently asked question about waste management PCB recycling machine:

Q: Can PCBs with electronic components be disposed?

A: If customer is to destroy the data or information, it can be directly processed. But the separation rate won't be high. If customer want higher separation rate, it's better to remove the electronic components from the waste PCBs first by electronic components dismantling machine.

Q: What's the processing capacity of your waste management PCB recycling machine per hour?

A: The smallest processing capacity of PCB recycling machine is 100kg/h, and the biggest capacity is 2000kg/h. But if you have more larger needs on processing capacity, our engineers can customize proper solution and machine configuration according to your needs.

Q: How to test the running situation of PCB recycling machine?

A: We have prototype equipment in factory, so you can come to our factory to test the running situation yourself. If you are unable to visit the factory in person, our sales manager can contact you to watch the operation of the factory and equipment online.

Q: Which countries have your equipment been exported to?

A: Henan Doing Company has rich experience in exporting machine for over 11 years. Our machine has exported over 30 countries and areas. As for waste management PCB recycling machine, it has exported to Russia, India, Bangladesh, New Zealand, Mexico, Colombia, etc.

Hope this article can give you a simple understanding of waste management PCB recycling machine. And if you have other questions, or are interested in waste management PCB recycling machine, please contact us. Our engineers and sales managers will be happy to serve you.
