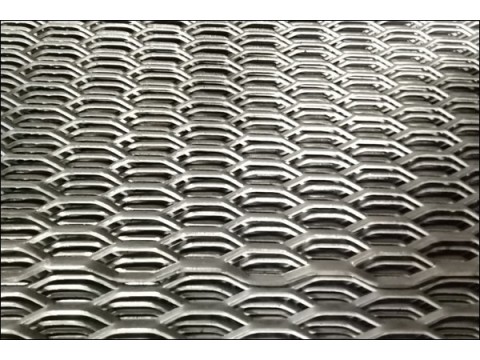

Hexagonal Opening Expanded Mesh,Hexagonal Expanded metal Screen

Expanded Mesh, Hexagonal Opening:
Thickness : 0.5mm to 8mm
Width : up to 2.5M
Material of Expanded metal Mesh: Carbon steel, aluminum metal, stainless steel metal, nickel metal and so on.

Uses of heavy type hexagonal opening expanded mesh: Fencing for road, railway, civil building, water conservancy's construction; protecting of all kinds of machines, electrical equipment, window and aquatic product's breeding

standard hexagonal expanded metal mesh.
Long diagonal = 6.0mm
Short diagonal = 3.5mm
Pass =1.0mm
Thickness = 0.6mm

standard square hole
Long diagonal = 4.0mm/6.0mm
Short diagonal = 2.9mm/4.5mm
Pass= 0.6mm/0.6mm
Thickness = 0.6mm/0.6mm

Galvanized expanded metal lath rolls, hexagonal opening shape 12x35mm, weight: 1.5 kg /m², width: 1m, length 15m
GI welded wire mesh, opening 25x25mm, wire dia. 1.2mm, size: 1.2x30 meters.

Fine expanded titanium mesh:
a. 0.6 mm thick in hexagonal design with mesh size 1 x 2 mm and 1.5 x 2 mm
b. Same as (a) but in diamond shape if you have it

Fine expanded stainless steel
a. Same as 1a
b. Same as 1b
1 metre wide x 10 m length.

Features: it is strong and wear-resisting

MS EXPANDED MESH-mild steel according to ASTM A 36 – standard specification for carbon steel structural steel

Expanded Mesh .032 carbon steel, 6.5" SWD x 48" LWD ¼" hexagonal bonded edges.
Specifications:
032 flattened
Carbon steel
.235 LWO
.18 SWO
Bonded edges
6.5” wide
48” long

Raised Expanded metal

The strand measurements for the first picture shown are approximately: 11mm x 5mm with a thickness of 2 mm, or .386in x .172in with a thickness of .046in.

The second picture shown has measurements of approximately: 15mm x 5mm with a thickness of 3mm, or .615in x .183in with a thickness of .045in.

The first photo is a regular standard diamond shape and the second is hexagonal and both are RAISED.
