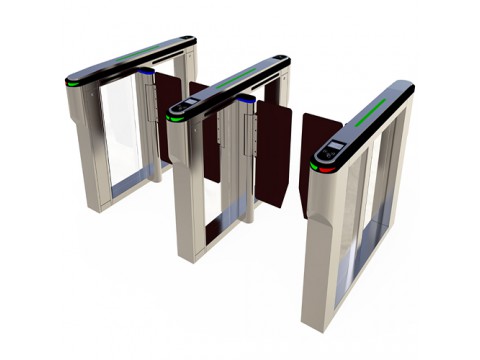

Speed Turnstile Gate JDSG-27

Speed Turnstile Gate Featurers
1. Accurate tailgating detection
2. Precision controlled movement of obstacles and detection of all obstructions
3. Reinforced detection to enhance user protection and manage passage of luggage
4. Obstacles automatically open to free the passage in case of power failure
5. Minimal footprint for maximum throughput
6. Unique detection algorithm prevents fraudulent entry with greater user safety
7. Smooth integration of proximity, magnetic card readers, biometric scanners and other user authentication systems
8. Transparent and elegant design
9. High-density matrix of infrared beams follows users’ progression through the gate
10.The swing panels are available in heights of 1.2m, 1.4m or 1.8m to provide increasing levels of security as required.

Speed Turnstile Gate Applications
Offices
Banks
Public institutions
Data centres
Sensitive sites
Schools and universities

Speed Turnstile Gate Parameters

Housing Material	1.5mm~2.0mm #304 stainless sheet
Dimension	1400 x 160 x 980mm
Power Supply	AC220V / AC110V, 50/ 60 Hz
Channel Width	600~900mm
Drive Motor	DC 24V brushless motor or servo motor
Pass Speed	35 ~45 persons per minute
Input Interface	Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction	Bi-directional
Communication interface	RS485
Gate open when power failure	Yes
Open Time	0.2 second
Life Cycle	5 million times
Working Temperature	-30°C~+70°C
Working Environments	Indoor, outdoor (with shelter)

Speed Turnstile Gate System Diagram

Project Cases for Reference

What is a speed turnstile gate?
Speed turnstile gate is upgraded optical waist height turnstile gate that provides convenient, fast and secure access, featuring fast traffic speed, running speed, accurate positioning function and stable operation. Speed gate turnstiles employees stable DC24V brushless motor or servo motor to gurantee rapid throughput and long-term stable operation. Speed turnstiles are supplied with slim and elegant design which allow them to be used for compacted places, and blend into surrounding aesthetics as well. Combining the physical barrier and advanced sensor technology to provide entry detection and prevention without the need of a guard, speedgate security turnstiles are gaining in popularity for the applications where remaining safe and secure is crucial, and widely used for offices, banks, public institutions, data centres.

How does a speed turnstile gate works?
Speed turnstile gate is an effective entrance control management acting as physical barrier turnstile between secured area and public area. Speed gate turnstile provides bi-directional access in conjunction with a facility access control system. When enter, pedestrians need to present a valid credential which opens the turnstile’s motorized barriers in the requested directions, allowing a single passage at one time. If an unauthorized pedestrian attempts to tailgate on a valid entry, or attempts to enter without authorization, the integrated sensors recognize the illegal passage attempt and sound an alarm, and deny the access. In case of power failure or an emergency, speed gate security turnstile will relase their swings for free access.

Speed turnstile gate types
Accroding to the different drive motor, speed gate turnstiles are devided into
Brushless motor speed turnstile gate: uses DC24V brushless motor, featuring no mechanical friction, low running noise, long life span, higher rotation speed, higher power conversion efficiency.
Servo motor speed turnstile gate: uses servo motor, more faster and reliable, longer life span than brushless type speed turnstile.
The cost & price of servo motor speed turnstile gate is higher than brushless motor speed turnstile gate.

What are the difference between speed turnstile gates and swing turnstile gates?
Chassis design: Speed turnstile gate come with slim and modern-look with chassis width ranging 100-180mm and the length is about 1400mm, and the swing arm are made from the pendulum plexiglass or tempered glass.While swing turnstile gates are designed with wider chasiss, and the width of the chassis is generally about 280mm and the length is 420~1400mm, and the swing arms are made from pendulum plexiglass glass or #304 stainless sheet.
Traffic speed: The opening time of speed turnstile gates is 0.3 seconds / per time, 30~45 person / minute can pass, and the speed can be adjustable, providing faster access than swing gate turnstile. Speed turnstile gates come with memory funciton, by which the users can swip cards continously and access contiously. While the opening time of swing turnstile gates is slower and traffic speed is around 20~25 person / minute, and they comes without memory function, so only one user to be allowed to pass each time
Drive way: The speed turnstile gate movement adopts directly driven way, combining a clutch with an encoder . Because of the high motor transmission efficiency , namely the large transsision coefficient, and the effective power of the motor can be transmitted to the swing arm to the maximum extent. When a suddent external force acts on the swing arm, and the swing arm deviates from the zero position, the solenoid valve immediately locks the gate to eliminate the external force, and the encoder acts to direct the swing arm to return to the zero position. In event of an unauthorized access, the clutch will immediately lock the gate.While, the swing turnstile gate movement adopts sliding friction, the priciple of four-wheels-four-grooves, with lower transimission efficiency . The wheel and groove are positioned at 90°. Each time the swing arm swings, the groove wheel will side and rub once. The positioning is also positioned by a fixed mechanism. In case of external force, if the anti-collion device is not installed, it will directly hit the movement or the swing arm, by which the swing arm will deviate from the middle zero position, and the 2 sides will not be aligned or synchoronized. In the worse case, the movement will not work properly and the swing arm will bend. Illegal intrusion can only give an alarm and can not be locked.
Limiting way: swing turnstile gates use proximity swithches or optocoupler signals, with large contact area and inaccurate limits. Speed turnstile gates use encoders to limit the position, which can be accurate to 1°

What are the advantages of speed turnstile gates?
1. Designed with a stainless-steel housing and transparent glass slide walls that create an aesthetically pleasing access checkpoint
2. Provide a strong visual obstacle against intrusion
3. Supplied with tailgating attempt detection to avoid illegal intrusion
4. Slim, elegant design and minimal footprint for blending into surrounding aesthetics
5. Supplied with wrong way detection prevents the gate opening when a user approaches from the secure side and intrusion detection prevent doors opening on to users in the safety zone
6. Provides an effective crowd control mamagement with rapid throughput and comfortable passage in an intense flow of people, avoiding queues at the entrance and exit
7. Supplied with multiple physical barrier height and lane widths to provide easy access to the disabled, wheelchairs, and people with large objects or deliveries, meeting both accessibility and security requirements.
