Crowd control full height turnstile, full height security turnstile access control, automatic full height turnstile gate is reliable with good performance of tailgating protection

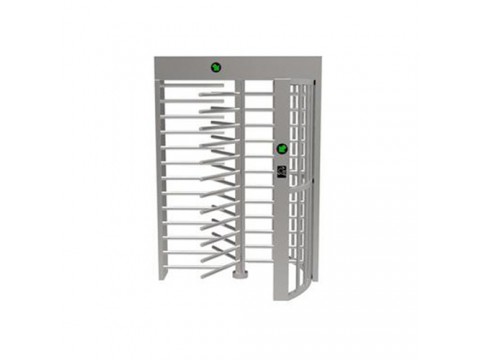

Crowd control full height turnstile JDFHT-3 is a full-height security solution to mitigate tailgating and handle moderate throughput by controlling access to various facilities and enclosures, any illegal intrusion or tailgating attempts will activate a alarm, which supports anti-collision function by which access control turnstile will be locked automatically when the opening signal is not received. The access control full height turnstile JDFHT-3 is easy to use and maintenance, and automatically detect whether the gate is in the initial position.
Crowd control full height turnstile JDFHT-3 is available in both one-way and two-way access control, and supports automatic reset function. After opening the gate, the automatic full height turnstile will automatically cancel the access rights of pedestrians when they do not pass within the specified time. In addition, the passage will be released for free passing in case of power failure or emergency.
Crowd Control Full Height Turnstile Features
1. Available in both one-way and two-way access control
2. Easily integrates with almost any access control system
3. Free access under power failure
4. Easy, safe and fast to use
5. Easy installation and field-configurable
6. Easily change turnstile passage mode
7. Durable construction suitable for outdoor use in all weather conditions
8. Automatic self-centering prevents over or under travel of rotating section
9. Full height for maximum security
10. Free egress in emergencies or loss of power
Crowd Control Full Height Turnstile Applications
Industrial plants
Company premises
Power plants
Parking sites
Bike parks
Military installations
Crowd Control Full Height Turnstile Parameters
| Housing Material | 1.5mm~2.0mm #304 stainless sheet |
| Dimension | 1600 x 1350 x 2300mm |
| Power Supply | AC220V / AC110V, 50/ 60 Hz |
| Channel Width | 600mm |
| IP Rate | IP45 |
| Pass Speed | 30 ~35 persons per minute |
| Input Interface | Dry contact signal or +12V level signal or DC12V pulse signal |
| Rotating Direction | Bi-directional |
| Communication interface | RS485 |
| Gate open when power failure | Yes |
| Open Time | 0.2 second |
| Life Cycle | 5 million times |
| Working Temperature | -30°C~+70°C, Relative Humidity: ≤90%, no condensation |
| Working Environments | Indoor, outdoor (with shelter) |
Crowd Control Full Height Turnstile System Diagram
Project Cases for Crowd Control Full Height Turnstile
What is a crowd control full-height turnstile ?
Crowd control full-height turnstile is an upgrated waist-high turnstile
with floor-to-ceiling arm design. With standard height 2300cm, the full
height turnstile eliminates the possibility of someone jumping over the
turnstile, also effectively eliminates the possibility of someone
crawling under the turnstile, making it an efficient crowd control
solution to manage pedestrians entering or exiting restricted areas
where perimeter control is required. Entry control full-height turnstile
is designed with strict tailgating function which allows access to one
person at a time by locking after a single person entry. Such access
control turnstile can be used for bidirectional pedestrian access
control applications.
How does a crowd control full-height turnstile wors?
1) After start system power supply, device system self –test, the system enter standby mode
2) User provides enter / out valid open signal (access control system
have open signal by card, device system open signal by button) to the
device control board.
3) After device controller receive the enter / out open signal, it will
send a control signal to electromagnet, device unlock for into / out and
person can push bar and access
4) After person access, device controller send control signal to electromagnet and device close door, system enter standby mode.
5) If the pedestrian does not provide valid open signal and access, the system will lockbar and prohibit pedestrian access.
The types of crowd control full-height turnstiles
The crowd control full-height turnstiles can be devided into 3 types
Fully-automatic crowd control full-height turnstile: This movement of such turnstille combines DC brushless motor with
special-shaped sheave mechanism. When passing, the motor drive the brake
lever to rotates forward by a certain angle, and people lightly touch
the lever to pass.
Semi-automatic crowd control full-height turnstile: the
device core is not motor-driven, with control circuit boards and other
electrical accessories. After receiving a valid open signal, the full
height security turnstile allows pedestrian to access by pushing the bar
manually.
Mechanical crowd control full-height turnstile: it is
purely mechanical device without any electrical equipment. The users
pass through the passage by gently pushing the brake lever without open
signal from access control system. The automatic positioning and reset
system can control the free passage in one direction, and the other
direction is locked.
What are the advantages of crowd control full-height turnstile?
1. provides the highest security level and unmanned operation way
2. offers the strict crowd control management with high level safety and reliability
3. With good waterproof and dustproof performance, well suitable for outdoor and indoor applications
4. With strong compatibility, motorised full height turnstile gate is
compatible with various vertification device, security systems, etc.
5. Easy to use without guiding
