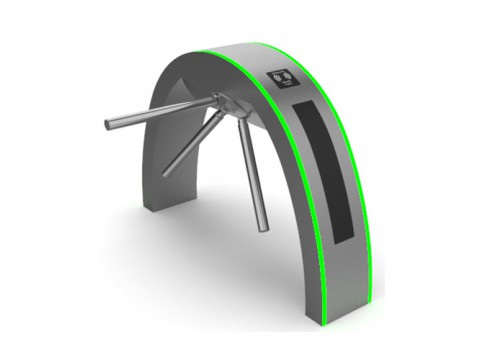

Tripod Turnstile Gate JDGD-17

Unique design tripod turnstile gate, automatic tripod barrier for crowd control solutions from Chinese automatic turnstiles manufacturer & supplier

Tripod turnstile  gate JDGD-17 is one of our morden- look crowd control solutions for securing entrances with high pedestrian flow,which is reliable, convinient and easy to use, and compatible with any validation system on the market (biometrics, fingerprints, QR scaner, facial recognition). The LED notification lights are fixed onto both end to give notice of presented credential status to pedestrians, and any intrusion and tailgating attempts will activate alarm. The advanced positioning technology is used to precisely control the movement position, ensuring the tripod turnstile gate runs more accurately and stably.

As an idea crowd control solution, the waist height access control turnstile JDGD-17 is suitable for any applications requiring effecitive crowd management such as office buidings, administrative buildings, athletic facilities, university facilities. In addition, in case of emergency or power failure, the horizontal arm will collapse to allow a clear passage.

Tripod Turnstile Gate Features
1. Integration possible with virtually any access solution
2. Field configurable for single direction or bi-directional operation
3. Regulates the flow of people with ease, even during the busiest periods of the day
4. Safe, controlled rotation and self-centering arm rotation
5. Free egress in emergencies or loss of power
6. The passing time can be freely set, and it will be locked immediately after the predetermined time.
7. Easy installation on finished floor surfaces, optional on unfinished surfaces
8. Extremely versatile operational features
9. functional, quick and space-saving
10.Easy, safe and fast to use

Tripod Turnstile Gate Applications
Athletic facilities
Cafeterias
Amusement parks
Stadiums
Office buildings
Residential area
Fitness center

Tripod Turnstile Gate Parameters

Tripod Turnstile Gate Design

Tripod Turnstile Gate Dimension

Tripod Turnstile Gate System Diagram

Tripod Turnstile Gate Project Cases

What is a tripod turnstile gate used for ?
Tripod turnstile gate is a simple, economical and compact waist high access control turnstile with three revolving arms, coming with chassis, mechanism, and three blocking rods, providing dissuasive automated access control for sites with heavy use. Tripod turnstile gate adopts precisely control the movement position to ensure it runs more accurately and stably, made of stainless steel in a modern style, providing a secure, elegant and modern-looking solution for outdoor and indoor applications. On the other hand, tripod barrier gate turnstile is simplified integration to access control and visitor management systems, acting as an ideal crowd control solution for any location that requires effective crowd management, slowing pedestrian traffic flow down for facilitating closer monitoring of ingress by security guards.

How does a tripod turnstile gate mechanism works?
The mechanical transmission system of the tripod turnstile gate is mainly composed of: the main shaft, front & rear bearing seats, buffer mechanism, electromagnetic coil seat, rotation mechanism, three-claw wheel, ratchet wheel, the reset mechanism. To enter, the pedestrians scan their valid barcodes or cards, and the electronic verification system will verify, record, and then send a signal to the control circuit to make the solenoid energized and rotate 90°. At this time, the green signal light is turned on, and the pedestrians pass through by manually push the brake lever, and then the reset mechanism restores the brake lever to home position. After solenoid completes the power-on control time, the power is turned off and reversed. Meanwhile, the ratchet wheel and the rotary brake support wheel are in a locked state, and the passage is locked waiting for next entry.

The types of tripod turnstile gates
According to the operational way, tripod type turnstile can be divided into 3 types
Fully automatic tripod turnstile gate : equipped with brushless motor which used to control the operation and stop of movement. The arms of fully-automatic tripod turnstile gate will rotate towards the open direction for a certain angle after receving a valid open signal, and the arms will go on rotating automatically to the open direction after the user push them slightly. The arm will automatically drop when it is powered off, and automatically go up when power on.
Semi-automatic tripod turnstile gate : supplied with electromagnets to control the operation and stop of movement. The electromagnet drives the unlocking arm to unlock after receving a valid open signal, and then the release-lever rotates in a single direction, and the users slightly push the arm for entry. The arm will automatically drop when power off and the arm will be raised by hand when power on. Meanwhile, the users need to push the lever before entry after swipping their cards.
Mechanic tripod turnstile gate : it is purely mechanical device without any electrical equipment. The users pass through the passage by gently pushing the brake lever without open signal from access control system. The automatic positioning and reset system can control the free passage in one direction, and the other direction is locked.

What are the advantages of tripod turnstile gate?
1. With relatively high anti-tailgating design , tripod turnstile gate can effectively control only one person passing at a time
2. only 1 tripod turnstile gate forms a passage, providing cost-saving operation
3. With strong compatibility, tripod turnstile gate is compatible with various vertification device, security systems, etc.
4. Due to its high popularity and simple structure, tripod barrier turnstile is easy to use
