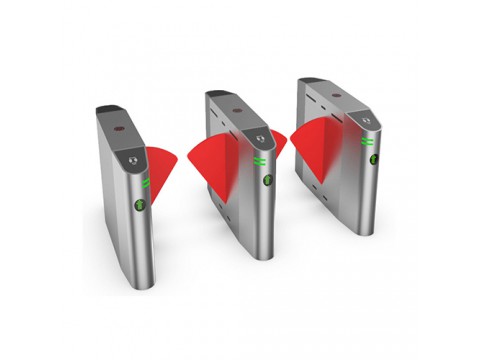

Waist Height Flap Turnstile Gate JDYZ-19

Waist Height Flap Turnstile Gate Features
1. Easily integrates to access control and fire safety systems through dry contact
2. Forcibly enter or tailgating attempts will be prompted by audible & visible alerts
3. High performance and robustness
4. Unique design meets the latest architectural trends
5. Physical security improved with fast double retractable wings for immediate lane closure
6. Quick and smooth motorized retractable wings for bi-directional operation
7. Fast user throughput
8. In case of emergency, the flap turnstile arm will open automatically to allow free access
9. Obstacles automatically open to free the passage
10. Stable and efficient operation with lower noise

Waist Height Flap Turnstile Gate Applications
Company premises
Power plants
Industrial plants
Government facilities
Stadiums
Airport and port areas
Public transportation terminals

Waist Height Flap Turnstile Gate Parameters

Housing Material	1.5mm~2.0mm #304 stainless sheet
Dimension	1600 x 300 x 1000mm
Power Supply	AC220V / AC110V, 50/ 60 Hz
Channel Width	550mm
Drive Motor	DC 24V brush motor
Pass Speed	40 persons per minute
Input signal optional	Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction	Bi-directional
Communication interface	RS485
Arm drop when power failure	Yes
Open Time	0.2 second
Life Cycle	3 million times
Working Temperature	-30°C~+70°C
Working Environments	Indoor, outdoor (with shelter)

Waist Height Flap Turnstile Gate Dimentions

Waist Height Flap Turnstile Gate System Diagram

Project Cases for Reference

What is a waist height flap turnstile gate?
Waist height flap turnstile gate is a simple and cost-effective waist high optical turnstile which is made up of two cabinets connected by invisible infrared beams. These cabinets use the infrared beams to detect whether pedestrians have passed through the optical turnstile lane. The illegal intrusions or tailgating attempts will trigger a visual or audible alert . If the turnstile is supplied with a physical barrier, the barrier will refuse to open along with the alerts to effectively deny access. Waist height turnstile  flap gate is able to be integrated with various access control systems and can be controlled remotely. Waist height flap turnstile gate is mostly used at commericial and industrial places such as exhibitions, supermarkets, public transports.

How does a waist height flap turnstile gate works?
Waist height flap turnstile gate comes with visible wings which operate in two-directional movements, when closed, the wedge-shaped wings meet near the top forming a barrier. When opened, the wings fully retract into the cabinet, creating free passage. Waist height flap gate turnstile is supplied with infrared sensor to ensure that only one person enters for each authorized credential at one time. The pedestrians shows their valid credential before entry, the optical flap turnstile will open for free access, and automatically close after access completed or out of passing time if pedestrians do not pass within pre-set time. Access control flap turnstile provides a function that protects a person from any injury caused by the closing of the flap barrier wings during the person’s pass-through duration.

Waist height flap turnstile gate applications:
Waist high flap turnstile adopts streamlined design with a more modern aesthetic to meet the latest architectural trends. The stainless steel construction and beautiful design allow them to be used in lavish corporate lobbies, office buildings, data centers, government facilities, public transportation systems, stadiums and more. Waist high turnstile mechanism provides very quick throughput, so they are often also implemented in subways and other public transportation terminals.

Waist height flap turnstile gate types:
According to different drive motor, waist height flap turnstile gates can be divided into
Brush motor waist height flap turnstile gate: such flap type turnstile uses DC24V brush motor, it is an ideal crowd control managment requiring simple and cost-effective operation.
Brushless motor waist height flap turnstile gate: such flap type turnstile uses DC24V brushless motor, featuring fast opening speed, barrier-free, silent, safe to use,easy to use and maintain. Because of modular design, simpler structure and more convenient maintenance. The brushless motor is powerful, no wear, no noise, and its life is much longer than other motors.

Optical turnstile Variation:
Flap gate optical turnstile is a classic type of waist high optical turnstiles which can come with a physical barrier or they can be barrier-free. Barrier-free optical turnstile relies solely on infrared beams to detect and deter passage, while barrier optical turnstiles utilize the internal infrared technology coupled with a physical barrier to provide added security against unwanted entry. optical turnstile cabinets can be installed as close to or as far apart from each other as needed. This provides flexibility and allows lanes to be handicap accessible.

What are the advantages of waist height flap turnstile gate?
1) Supplied with fault self-checking and alarm prompting function, which is convenient to maintain and use;
2) The running status is programmable directly from the control board
3) Mechanical structure & induction anti-pinch functions
4) Sound and light alarm function
5) Anti-shock function, the swings are automatically locked if no open signal is received.
6) Telescopic boom synchronization function;
7) Automatic reset function. when open, if the pedestrians do not passage within the specified time, the system will automatically cancel the user’s permission to pass this time.
8) flap barrier system automatically open after power failure, and automatically close when powered on;
9) Flexibly integrate a variety of access control systems
10) One-way or bidirectional access mode
