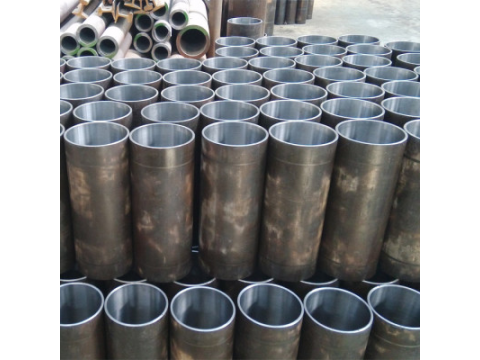

Hydraulic cylinder tube is the inner diameter honed tubing used to produce and repair hydraulic cylinders and pneumatic cylinders, it is known as Hydraulic cylinder barrel also.
Hydraulic cylinder tube usually is produced by method of honing or skiving & roller burnishing, using “Suitable To Hone” Cold Drawn Seamless Tube or drawn over mandrel tube, so it is also called honed cylinder tube. The machining method of the honed cylinder tube is determined by the size, mold available and the request of the customer.
Materials of our Hydraulic cylinder tubes:
Our honed cylinder tubes usually are made from grades SAE 1020, SAE 1026, E355 and ST52.3. SAE 4140, 42CrMo, 27SiMn and so on.
Omong these, E355 and St 52.3 honed tubes are the most popular, and SAE 4140 honed hydraulic cylinder barrel tubes are for high strength applications.
We also produce hydraulic honed cylinder tubes with other materials on customers’ request.
Hydraulic cylinder tube Size Range:
As one of the leading hydraulic honed tube suppliers in China, our factory produce honed cylinder tubes in a wide range of metric sizes and imperial sizes.
Inside Diameter 32mm to 600mm; Imperial sizes inner diameter 1.25 inch to 24 inch.
We supply our hydraulic cylinder tubing in fixed length and random lengths, the max. Length our our honed tube is 14 meters.
Applications:
Skyline’s Honed cylinder tubing is mostly applied for producing and repairing hydraulic cylinders and pneumatic cylinders, and our honed steel tubing is ready to use as hydraulic cylinder barrels without any further inside diameter machining.
