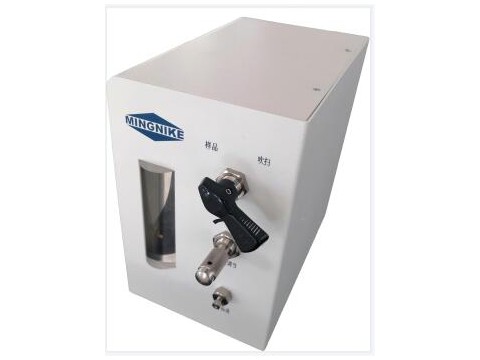

MG220 High pressure injection system

MG220 can obtain better analytical results for ethylene glycol and other polar samples. Better analytical results can be obtained for polar samples such as ethylene glycol.Wide boiling point hydrocarbon samples (C5 to C40) can be analyzed with this device.

Technical parameters:
· Pressure working range: 0.7-4MPa;
· Driving gas and pressure: dry air (or other inert gas), pressure: 0.4MPa;
· Auxiliary gas flow: 50 ml/min--200 ml/min;
· Dimensions: 130mm × 200mm × 200mm;
· Installation mode: can be directly mounted on the  injection port of chromatograph;
· Weight: about 1.5kg.
