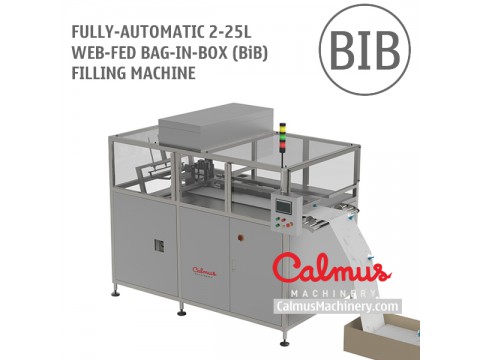

Fully-automatic BiB Filling Machine Bag in Box Filler

Fully-automatic BiB Filling Machine | WEB-Fed Bag in Box Filler

This fully-automatic bag in box filler is designed for filling spouted bags with a wide range of liquids like drinking water, fresh milk, edible oil, liquid egg, post-mix syrup and beverage. It features fully-automatic by employing PLC and touch screen control system. The whole process of continuous bags feed, delivering to heads for decapping, vacuumization (optional), nitrogen injection (optional), filling, capping, cutting apart and transiting bags to the conveyor can be completed automatically, no human operation required.

This machine can cap various spigots including Vitop and Scholle's. It is designed with CIP (Clean in Place) function and pipeline connection.

Features:
1) Fully-automatic, WEB type bags fed.
2) Easy to use. The touch-screen control system makes operation easy.
3) An electromagnetic or turbine flowmeter employed improves filling precision and truly achieves the quantitative filling.
4) An air filter employed brings clean air to the filling space.
5) Grade 304 stainless steel body and 316L stainless fluid-contact parts.
6) Filling a different capacity bag acceptable only by changing the setting.
7) Options of vacuumization and nitrogen injection available for specific products use.

Specifications:
Applicable bags: pre-cut continuous module or WEB type bags, spout-fitted, 2-25 litres. (Spout is called "Gland" or "Flange" too.)
Filling capacity:
450-510 bags/hour for 5 litres
360-400 bags/hour for 10 litres
250-270 bags/hour for 20 litres
Power: 1.0 kW
Compressed air: 6-8 bar, 500 NL/min

Procedures:
1. Automatically feed bags.
2. Automatically decap, fill, cap and cup apart bags.
3. Automatically exit filled bags.

Fully-automatic. Grade 304 stainless steel construction and grade 316L stainless steel fluid-contact parts. World famous brands of key components and many are imported.

Absolutely EU quality standard, but less than half of EU price.

We also supply the whole Bag in Box Packaging Line which includes the Bag in Box Filling Machine, Box Erector, Bag Inserter and Box Sealer, fully-automatic.
