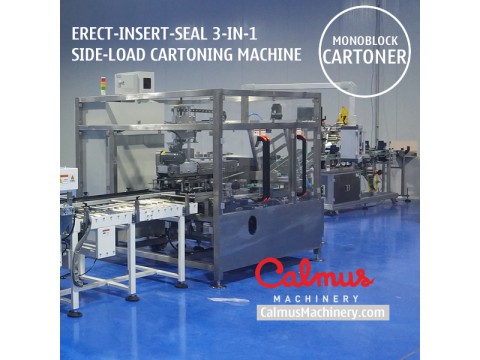

Form-Insert-Seal 3-in-1 Cartoning Machine | Monoblock Side-Load Case Packer for Packaging Bricks
This side-load cartoning machine is a monoblock case packer with corrugated cases/cartons forming, filling and sealing functions. It employs a pushing system for inserting brick-shaped products in multiple layers into cases from their sides. This case packer can accommodate a wide range of case sizes and pack patterns. The cartons can be sealed with tape or hot-melt glue. It is a monoblock cartoning machine and easy to be installed.
Features:
1. Form-insert-seal 3-in-1, with a smaller footprint.
2. The products that this machine can pack through its dedicated infeed system.
3. Easy to install.
4. System pauses and alert if cartons or tapes are empty.
Specifications:
Packing type: side-load
Sealing media: tape or hot-melt glue
Compressed air: 0.4-0.8MPa
Power supply: 3 phases, customized voltage
Power consumption: 3 kW
System weight: 2,300 kg
System dimensions: 3,500*1,900*2,300mm
We also can customize monoblock case packers for other shaped products than bricks.
