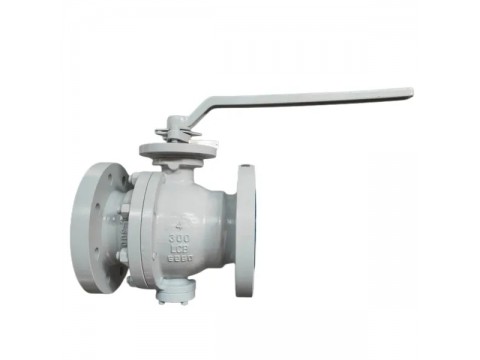

ASTM A352 LCB Trunnion Mounted China Ball Valves for Low Temperature, API 6D, 2 Inch, 300 LB, RF, 17-4PH stem, F316 ball & seat, RPTFE seat, Lever Operation, Nace MR0175
Valve Description:
1811023 Trunnion Mounted Ball Valve 2BS3RLCB
Design Standard: API 6D
Structure: Two pieces casting body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 2 Inch
Nominal class: 300 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lockable Lever
Body Material: ASTM A352 LCB
Trim Material: ASTM A182 F316, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection
