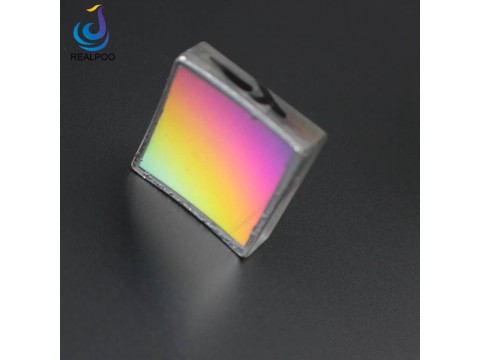

Holographic Concave Grating with 1200 Grooves
Specifications:
Material : N-BK7
Size : 32mm x 32mm x 9.5mm
Wavelength : 190nm to 900nm
Grooves(Line/mm) : 1200L/mm
Substrate: Optical Glass
Coating: Aluminum
Type: Reflective Diffraction Grating
Concave diffraction gratings are different from flat diffraction gratings. They have the advantage of being able to construct a spectroscopic optical system without using imaging elements such as concave mirrors. Therefore, it should be widely used in various analytical instruments, optical communications, biology, medical equipment and other fields. Spectroscopes using concave diffraction gratings can be roughly divided into polychromators and monochromators.
Realpoo Optics is a professional manufacturer of optical glass lenses, such as Spherical Lens, Glass Rod, Fresnel Lens, Opticsl prisms etc. The optics can be offered with coating or without coating. Welcome to send your inquiry.
