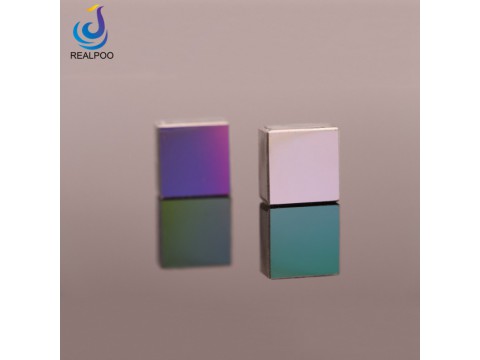

600 Grooves/mm 12.7mm x 12.7mm 500nm Plano Diffraction Grating

600 Grooves/mm 12.7mm x 12.7mm Plano Diffraction Grating

Specifications:

Material : N-BK7

Size : 12.7mm x 12.7mm x 6mm

Wavelength : 300nm to 1000nm

Grooves(Line/mm) : 600L/mm

Blazed Wavelength: 500nm

Substrate: Optical Glass

Coating: Aluminum

Type: Reflective Diffraction Grating

Plano diffraction gratings are mainly used for spectrum analysis and light wavelength measurement. It is an optical device composed of a large number of parallel slits of equal width and equal distance. There are many types of gratings. Generally, the commonly used grating is made by engraving a large number of parallel notches on the glass. The nicks are divided into opaque parts. The smooth part between the two nicks can reflect light. Realpoo Optica can make grating that has thousands to tens of thousands of grooves within the width of 1CM.

Realpoo Optics is a professional manufacturer of optical glass lenses, such as Spherical Lens, Glass Rod, Fresnel Lens, Opticsl prisms etc. The optics can be offered with coating or without coating. Welcome to send your inquiry.
