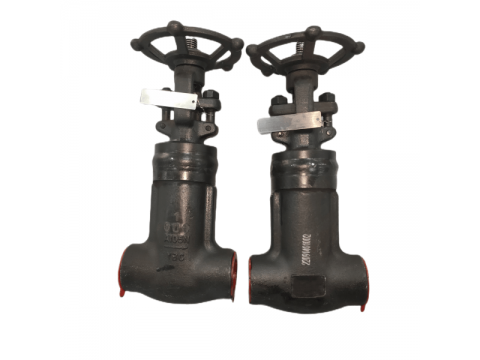

Bellow Seal Forged Globe Valve Suppliers for gas service, API 602, 1 INCH, 600 LB, SW, A105 Body, Trim 5, Welded Bonnet, Handwheel
Valve Description:
1852006 API 602 Forged Globe Valve 1GLB6SA10505-WB
Design Standard: API 602, ASME B16.34
Structure: Welded Bonnet, OS & Y
Nominal size: 1 Inch
Nominal class: 600 LB
Bore: Regular Bore
End Connection: SW-Socket Weld
Operation: Handwheel
Body Material: ASTM A105N
Trim Material: 1CR13+STL.6, Trim 5
Face to face: MFG'S
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid Disc, Adjustable Packing Gland, Bellow seal & welded bonnet for hazard service
Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 150-2500 LB
End connection: RF, RTJ, SW, BE, NPT
Working temperature: -29℃ - +400℃
