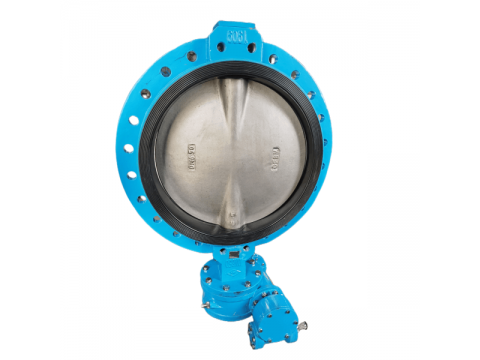

26 Inch Wafer End Rubber Lined Concentric Butterfly Valve Supplier, 150 LB, PN16, ASTM A216 WCB body, CF8M Disc, NBR seat, Gear Operation
Valve Description:
1861004 Concentric Butterfly Valve 26T1WWCB
Design Standard: API 609 Cat A, EN 593
Structure: Concentric
Nominal size: 26 Inch, DN650
Nominal class: 150 LB, PN16
End Connection: Wafer
Operation: Gear Operation
Body Material: ASTM A216 WCB
Trim Material: A351 CF8M disc, NBR seat
Face to face: API 609, EN558-1
Test and inspection: API 598
Key Features: Anti-corrosive rubber seat, Low torque, Excellent control characteristics, Economical material and installation space
Product Range:
Body material: Iron, WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 72 Inch (DN50 - DN1800)
Pressure range: PN6-PN20
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
