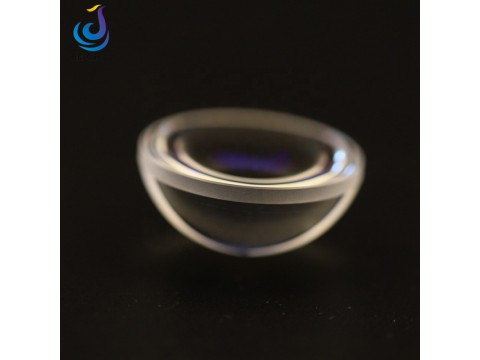

D25.4mm FL25.4mm N-BK7 plano convex lens

Plano convex lens is employed in microscopes and magnifying glasses to converge all the incoming light rays to a specific point.
The lens is used as a lens system in cameras as they focus light rays for a clear image.Lens has medical purposes as well, like the correction of hyperopia It is used in a projector.

Specifications:

Material : N-BK7
Focal Length : 25.4mm
Radius : 11.7mm
Focal Legnth Tolerance :+/-1%
Diameter Tolerance :+0.0/-0.1mm
Thickness Tolerance :+/-0.1mm
Surface Quality :40/20
Centration :<3 arc minutes
Clear Aperture :>90%
Bevel : Protective bevel as needed
Coating :Upon your request
