Applied Materials: Limestone, granite, cobble, dolomite, bluestone, basalt, sandstone, gravel, pebble, iron ore, construction waste, cement clinker, artificial sand, dry mortar and all kinds of stones and non-ferrous metal ores.

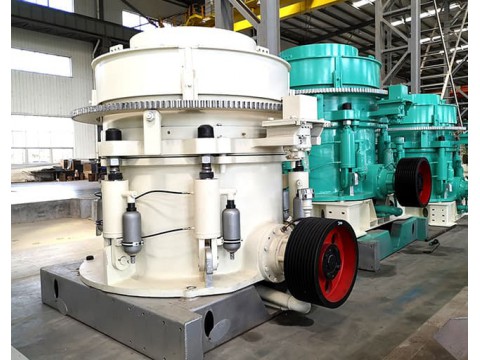

Introduction Of Hydraulic Cone Crusher?
Hydraulic cone crusher is a new type of cone crusher taking the advantages of single cylinder hydraulic cone crusher and PSG cone crusher. With advanced technology and optimized design, GYS hydraulic cone crusher is of improved performance, crushing capacity and working efficiency. Better eccentricity and crushing frequency are employed, which increases the quantity of the fine grains in the finished products. The content of particles in the outset that is smaller than the edge can reach 80%, which can improve the follow-up processing and decrease the comprehensive energy consumption.
Hydraulic cone crusher is widely used in the mining industry, cement industry, and other fields. Due to its strict requirements in particle size, high requirement of finished product rate and a high degree of automation, it is a favorable choice in the stone crushing plant.
Applications of Hydraulic Cone Crusher
Hydraulic cone crusher is widely used in the building industry, metallurgy industry and mineral industry for the medium and fine crushing of materials with intermediate and high hardness, such as iron ore, non-ferrous metal ore, granite, limestone, basalt, sandstone, gravel, pebble, etc.
Structural Advantages of Hydraulic Cone Crusher
Hydraulic safety device works automatically with the function of overload protection and cavity cleaning. The automatic control system is adopted, which makes remote control and by-side control are available.
The grouped hydraulic lubricating station allows an area occupation reduction. Besides, it is easy to wire the hydraulic cone crusher.
The discharging opening is conveniently adjustable by a hydraulic cylinder.
The dust collector is sealed by grease, which is of reliable structure with low failure rate.
Hydraulic Cone Crusher Working Principle
As a new type of cone crusher, hydraulic cone crusher is protected by hydraulic safety devices when overloading happens. As for the crushing process, it is completed by a fixed cone and the cyclic-moved cone. When a hydraulic cone crusher is started, the horizontal axis is driven by a motor. Two different sized wheels make the eccentric bushing rotate through the axis. The cone axis rolls jiggingly and the crushing wall goes near to and far away from the fixed cone wall regularly. The materials fallen between the fixed cone and movable cone is pressed and impacted constantly to the qualified size. Those qualified particles fall down under the effect of gravity and are belched out.
