Processed Materials: Granite, basalt, limestone, pebble, cement clinker, quartz sand, iron ore, bauxite, construction waste, glass and some metal, etc.

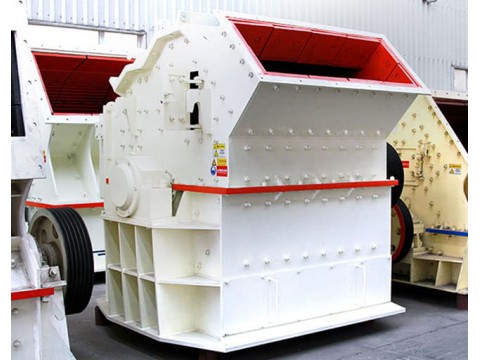

Introduction Of Fine Crusher
Fine crusher, also known as tertiary crusher, is one kind of crusher machine combining the working principle of impact crusher and hammer crusher with higher efficiency and lower energy consumption of 50% than traditional fine crusher. It is extensively used for the medium and fine crushing of materials that are brittle and of lower hardness, such as pebble, cement clinker, quartz, etc. in the refractory industry, metallurgy industry and other industries. Fote supplies fine crusher with simplified structure and high efficiency.
Applications of Fine Crusher
Fine crusher machine is also known as tertiary crusher, which is widely used for the fine crushing or sand making of granite, basalt, limestone, pebble, cement clinker, iron ore, bauxite, and other minerals. This crusher machine is suitable for high-quality sand and stone production. For example, it can be used as fine aggregate crusher equipment in highway and railway, quartz sand or silica sand making machine in the construction industry, cement industry, refractory industry, metallurgy industry, etc.
Advantages of Fine Crusher
Fine crusher is one kind of crushing equipment that can be utilized to make artificial sand. Therefore, it is called the third-generation sand maker or fine powder crusher.
Direct control over the output size is available for that there are grates inside the fine crusher. It is a replacement of sand making machine in some production line.
Split-type hammers are fixed on the rollers which are wear-resistant and easy to replace.
Stage crushing process is adopted to improve the crushing ratio and output size with stable and reliable performance.
Investment and long-run maintenance costs are 35-50% lower than the coequal scale traditional process and the output efficiency 35-50% higher.
Working Principle of Fine Crusher
Fine crushing machine is mainly composed of motor, driving system, main engine, etc. Fine Crusher runs based on the same principle that impact crusher does. When fine crusher works, rollers are rotated at high speed by motor. Stage crushing is adopted. Materials fed into the first crushing chamber get crushed with the hammers on the rollers and impacted to the chamber wall. Next, materials that have been firstly crushed fall into the second fine crushing chamber to have a further crushing here to qualified particles. When crushing finished, they are belched out.
