High Performance North Seeking MEMS Gyroscope

Advantages:

1. 0.02°/hr bias instability;
      2. 0.005°/√hr angular random walk;
      3. Small size 11 x 11 x 2mm.

Introduction:

ER-MG2-50/100, a high performance MEMS gyro sensor with 0.01-0.02°/hr bias instability and 0.0025-0.005°/√hr Angular Random Walk, is specially designed for north seeking, pointing, initial alignment in logging tools/gyro tools, mining/drilling equipment, weapon/UAV launch systems, satellite antenna,target tracking system and so on. Thanks to the high performance, ER-MG2-50/100 can also used in high precision attitude measuring, stabilization control, positioning, navigating in navigation grade MEMS IMU/ INS, Land surveying/land mobile mapping system, railway train system, etc. So ER-MG2-50/100 is a best, cost effective, robust, reliable, small size, light weight, low power alternative of medium-low navigation grade FOG DTG with north seeking, precision attitude measuring , inertial positioning and navigation function.

The ER-MG2-50/100 High Performance North Seeking Gyroscope is a single-axis MEMS angular rate sensor (gyroscope) capable of measuring angular velocity up to a maximum of ±100°/s with digital output compliant to SPI slave mode 3 protocol. Angular rate data is presented as a 24-bit word.

The ER-MG2-50/100 is intended for north seeking applications. As an advanced, differential sensor design rejects the influence of linear acceleration, enabling the ER-MG2-50/100 to operate in exceedingly harsh environments where shock and vibration are present.

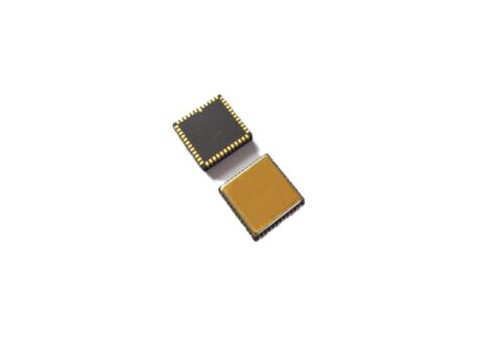

The ER-MG2-50/100 is available in a hermetically sealed ceramic LCC surface mount package, and is capable of operating at 5V supply and a wide temperature range (−45°C to +85°C).

Features:

Proven and robust silicon MEMS gyro

0.02°/hr bias instability

0.005°/√hr angular random walk

Digital output (SPI slave)

5V operation (4.75~5.25V supply)

Low power consumption (35 mA)

High shock and vibration rejection

Hermetically sealed ceramic LCC surface mount package (11x11x2mm)

Integrated temperature sensor

RoHS compliant

Application areas

North seeking in logging tools/gyro tools ,

Pointing, steering and guiding in advanced mining/drilling equipment

Initial alignment in Weapon/UAV launch systems

Direction pointing and tracking in satellite antenna,target tracking system

Guidance and navigation in navigation grade MEMS weapon system

Orientating and Positioning in railway train system

Precision platform attitude measuring and controls

Precision attitude, position measuring in navigation grade MEMS IMU/ INS

North finding and positioning in Land surveying/land mobile mapping system

Petroleum exploration;

Bridge, tall building, tower, dam monitoring

Rock and soil monitoring

Mining
